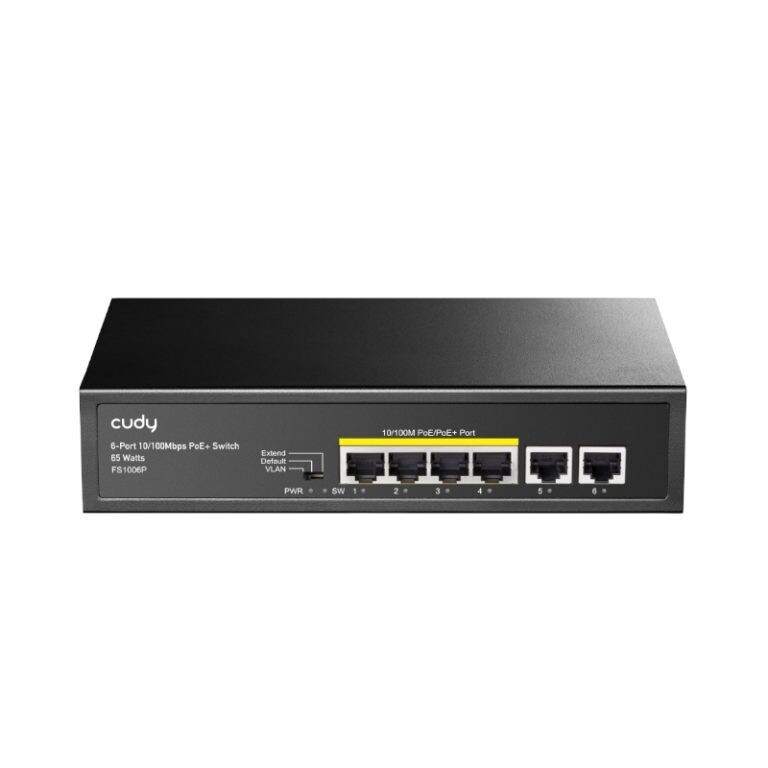

Cudy 6-Port Ethernet Unmanaged Switch - 4 Ports POE

Cudy- FS1006P- Cudy 6-Port Ethernet Unmanaged Switch - 4 Ports POE- The Cudy 6-Port 10/100M PoE+ Switch allows you to easily manage your home or office network. It features 4 Ethernet PoE ports with 2 x uplink ports as well. Its PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, and it’s compliant with IEEE 802.3af/802.3at network standards. Used for many applications the Cudy 6 Port PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a CCTV/VLAN mode for additional security, this allows the ports to be isolated from one another and can extend the range of your network for longer distances.

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation. It also supports rack mounting as well as wall mounting, and even desktop mount support thanks to its mounting slots underneath the device.

FEATURES:

Complies with IEEE802.3af/at Standard

Supports PoE power up to 32W for each PoE port

Auto-detect non PoE devices and PoE device

Power prioritization guarantee power supply of key nodes

CCTV/VLAN mode switch, remote power and data up to 250m

Supports IEEE802.3 x full duplex / half duplex ?ow control

Supports storage and forward for Data exchange

SPECIFICATIONS:

Network Protocol: IEEE802.3 / IEEE802.3u, IEEE802.3x / IEEE802.3af/at

PoE standard: IEEE802.3af/at

Interface: 6 x 10/100Mbps RJ45 port

POE port output: DC 52V

PoE port: 1-4

AC Input Voltage: AC100~240V

Power supply: 65W

Power Pin: Power over spare pairs 1/2(+) , 3/6 (-)

PoE output-port: Max 30W

MAC Address: 1K MAC address table

Packet buffer: 448K bit

Transfer Mode: Store-and-forward

Bandwidth: 1.2Gbps

Fan: Fanless

Machine weight: 1000g

Product Dimensions: 20 x 12 x 45 cm

WHAT’S IN THE BOX:

Cudy 6-Port 10/100M PoE+ Switch x1

Power Cable x1

User Manual x1- Command Your Network, Elevate Connectivity: Transform Your Infrastructure with Our Networking Switches – Precision-Engineered for Unmatched Performance, Redefining the Backbone of Seamless Data Flow
