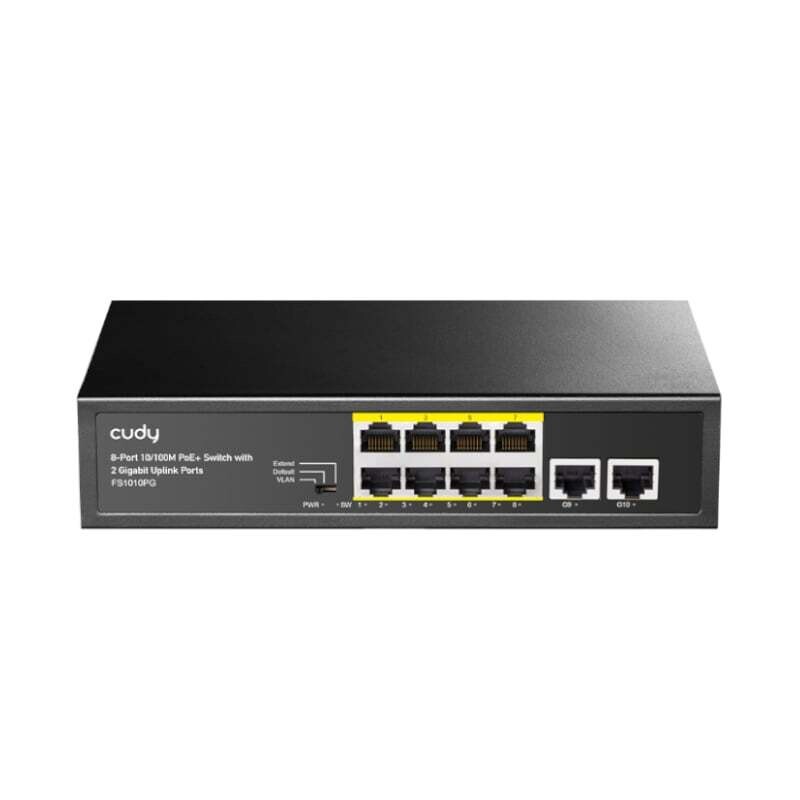

Cudy- FS1010PG- Cudy 10-Port Unmanaged PoE+ Switch

Cudy- FS1010PG- Cudy 10-Port Unmanaged PoE+ Switch- The Cudy FS1010PG 10-Port 10/100M PoE+ Switch allows you to manage your home or office network with ease. It features 8 Ethernet PoE ports and 2 uplink ports. Its RJ-45 connectors support any 10/100Mbps Ethernet devices and its compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1010PG works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to help dissipate heat quickly and ensure stable product operation. The Cudy FS1010PG can also be easily mounted to a wall or onto a rack to make installation more convenient.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

Support IEEE802.3at and IEEE802.3af Standard

120W PoE power output totally, up to 32W for one PoE port

Support IEEE802.3x full-duplex and half-duplex ?ow control

Support VLAN and CCTV Function

Panel lights to monitor working state and help fault analysis

Perfect security mechanism

Line-speed forwarding intelligent identi?cation

SPECIFICATIONS:

PoE standard: IEEE802.3af/at

Interface: 10 x 10/100Mbps The RJ45 port through consultation

Key function: CCTV&VLAN

PoE port: 1~8 port

PoE Total: 120W

Power supply: 120W

RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6

PoE output-port: Max 32W

Indicator: PWR, LNK/ACT, PoE

Network media:

10BASE-T: UTP category 3, 4, 5 cable(?100m)

100BASE-TX: UTP category 5, 5e cable(?100m)?

MAC Address Table: 8K, Automatic study, automatic updates

Jumbo frame: 1528Bytes

Packet Neck Scarfer: 2M bit

Transfer Mode: Store-and-forward

Packet forwarding rate: 1.48Mpps

Bandwidth: 2M bit

Fan: Fanless

Mains Input: 100~240V AC, 50/60Hz

Green energy saving: Support IEEE?802.3az)

Surge Protection: ±4KV

MTBF: >50000 hour

Electrostatic standard: Contact 4KV, air 6KV

Colour: Grey

Product Dimensions: 22 x 15 x 4.4 cm

Product Weight: 1000g

WHAT’S IN THE BOX:

Cudy FS1010PG 10-Port 10/100M PoE+ Switch – Grey x1

Power Adapter x1- Command Your Network, Elevate Connectivity: Transform Your Infrastructure with Our Networking Switches – Precision-Engineered for Unmatched Performance, Redefining the Backbone of Seamless Data Flow
