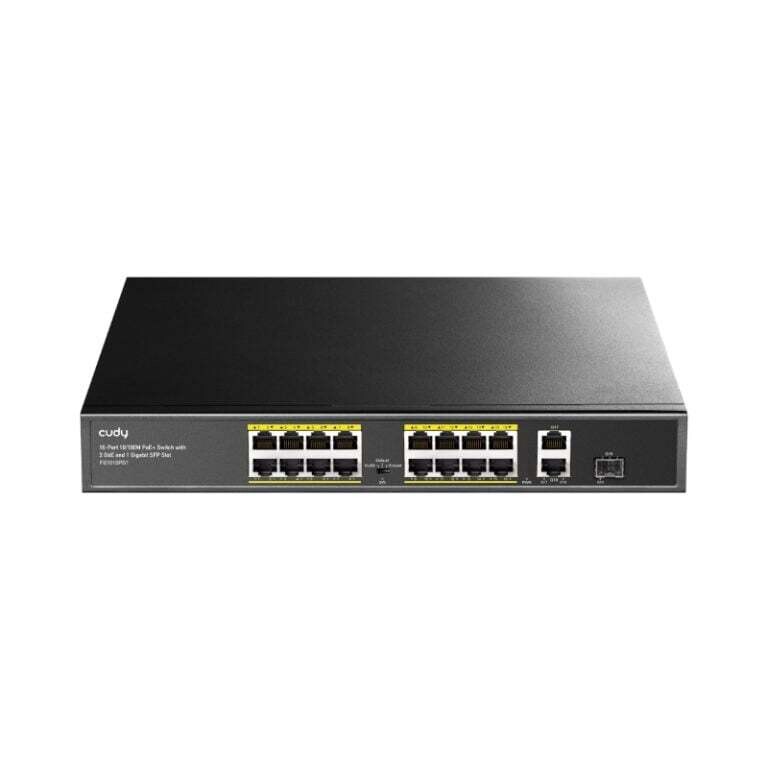

Cudy- FS1018PS1- Cudy 16-Port Unmanaged PoE+ Switch - Rack Mount

Cudy- FS1018PS1- Cudy 16-Port Unmanaged PoE+ Switch - Rack Mount- The Cudy FS1018PS1 18-Port 10/100M PoE+ Switch is a security surveillance Ethernet switch aimed at high-definition surveillance and security. It supports bandwidth speeds of up to 7.2Gbps and features 16 PoE ports and 2 uplink ports. It also complies with IEEE802.3af/at Standard speeds for great performance.

The 18 port switch supports 120W total PoE power and up to 30W for one PoE port. It uses Auto-sensing technology to automatically detect how much power is needed depending on the cable used. For additional protection, it features Port-Power-Prioritization technology which ensures continuous power supply of key nodes. In addition to this, it also offers lightning protection with an electrostatic standard of 6KV for contact and 8KV for air.

Used for many applications the Cudy FS1018PS1 works with IP Cameras for home, office or small businesses. Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to ensure stable product operation.

FEATURES:

200 watts PoE power supply, up to 30 watts per port

2 10/100/1000M uplink ports +1 SFP Port

16 10/100M PoE+ ports

CCTV mode supports remote PoE feeding up to 250m

VLAN mode isolates each PoE Ports for security

IEEE 802.3at / IEEE 802.3af standard compliant

Plug&play, simple setup with no configuration needed

Watchdog reactivates the abnormalPD by resuming POE power

SPECIFICATIONS:

Power

Power Supply: Built-in power supply

Voltage Range: AC100~240V

Consumption: 190W for 16 PoE

Ethernet

Speed

1~16 Port: 10/100/Mbps

G17~G18 Port:10/100/1000Mbps

G19 Port: SFP 1.25bps

Transmission Distance

100Meter(328ft)for RJ-45

The distance is determined by the optical module

The optical module is optional

Network Switch:

Ethernet Standard: IEEE 802.3 802.3u 802.3ab 802.3af/at

Switching Capacity: 7.2G

Transfer Rate:

14880 pps for 10Mbps

148800 pps for 100Mbps

1488000 pps for 1000Mbps

MAC Adsress: 4K MAC sddress table

Link/ACT:

On(Green): The port is connecting

Blinks: The port is receiving or transmitting data.

Off: The port is not linked successfully with the device

POE

On(Orange): PD is connected

Off: No PD is connected or power forwarding fails

PoE Pin Assignment: V+(RJ45 Pin 1, 2) – (RJ45 Pin 3,6)

Colour: Grey

Product Dimensions: 28 x 18 x 4.4 cm

WHAT’S IN THE BOX:

Cudy FS1018PS1 18-Port 10/100M PoE+ Switch – Grey x1
