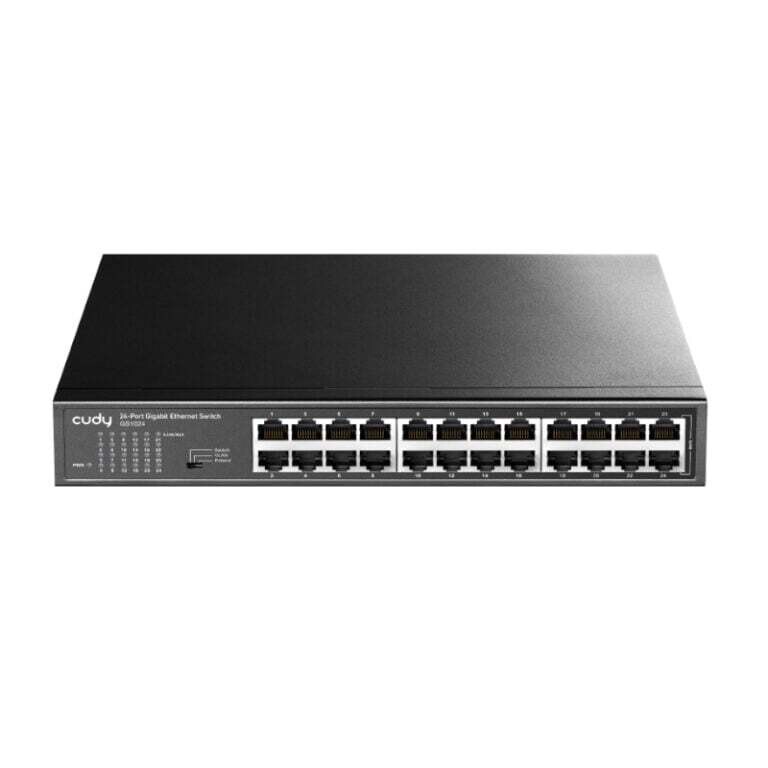

Cudy- GS1024- Cudy 24 Port Gigabit Metal Switch

Cudy- GS1024- Cudy 24 Port Gigabit Metal Switch- The Cudy 24-Port Gigabit Ethernet Switch is a great way to expand and manage your network. It provides a variety of installation methods for easy deployment in any environment. It supports both 11-inch rack-mounted steel cases as well as desktop installations making it very versatile. Designed for either the home or the office, this 24 port ethernet switch can easily be connected to your router, printer, monitor, PC, camera, gaming console or access point.

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work more reliably.

The Ethernet Switch allows you to save power up to 40%. The GS1024 uses green Ethernet technology to make your network more compatible without compromising performance. The switch automatically powers down the ports that are idle and can budget power output for different Ethernet cable lengths.

FEATURES:

Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards

24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware

Non-blocking switching architecture enables full wire-speed packets forwarding and filtering

Store-and-Forward switching method

Supports 16K MAC address auto-learning and auto-ageing

SPECIFICATIONS:

Power Supply: Built-in power supply

Voltage Range: Ac100~ 240V

Consumption: <15W

Speed: 1-24 Port: 10/100/1000Mbps

Transmission Distance: 100Meter (328ft)

Ethernet Standard: IEEE 802.3/802.3u / 802.3ab

Switching capacity: 48G

MACAddress: 8K MAC address table

VLAN (1-22Ports):

Port Isolation: Downlink designated ports are isolated from each other, only transmit data with the uplink port.

Default:

Standard Switch: All ports communicate freely

Extend (1-22Ports):

Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters.

LINK/ACT:

On: Green – The port is connecting

Blinks: / – The port is receiving or transmitting data

Off: / – The port is not linked successfully with the device

Transfer Rate:

14,880pps for 10Mbps

148,800pps for 100Mbps

148,8000pps for 100Mbps

Environment:

Operating Temperature: 0? ~ 40?

Storage Temperature: -40? ~70?

Operating Humidity: 10%~85% non-condensing

Storage humidity: 5%~85% non-condensing

Product Dimensions: 27 x 18 x 4.4 cm

WHAT’S IN THE BOX:

Cudy 24-Port Gigabit Ethernet Switch – Black x1

Power Cable x1

Mounting Brackets x2

Quick Start Guide x1- Command Your Network, Elevate Connectivity: Transform Your Infrastructure with Our Networking Switches – Precision-Engineered for Unmatched Performance, Redefining the Backbone of Seamless Data Flow
