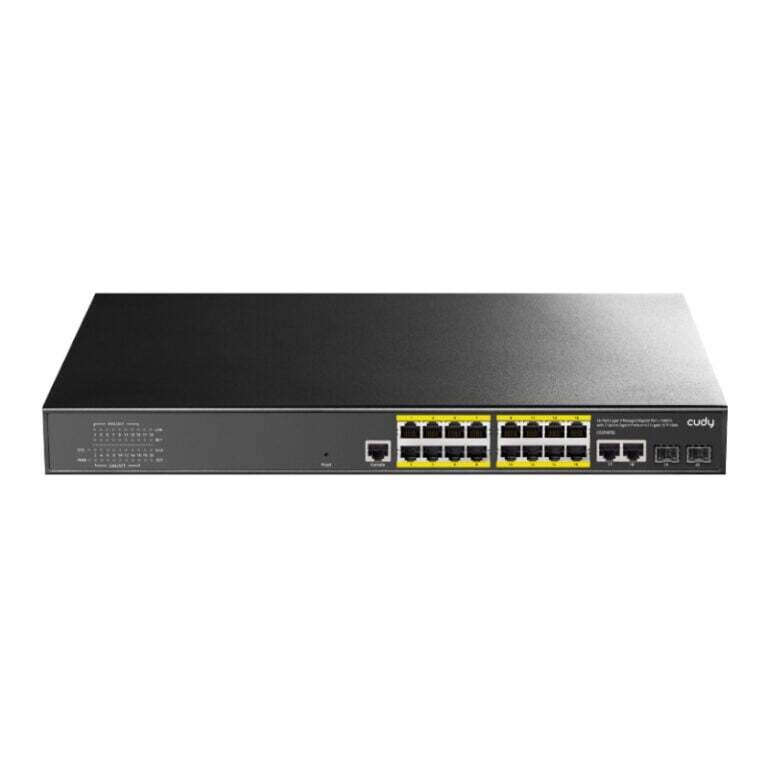

Cudy- GS2018PS2- Cudy 16 Port Layer 2 Managed Gigabit PoE Switch

Cudy- GS2018PS2- Cudy 16 Port Layer 2 Managed Gigabit PoE Switch- The Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 x Uplink and 2 x FSP slots allows you to manage your home or office network with ease. It features 16 Ethernet PoE ports with 2 x uplink ports and 2 x SFP slots. Its PoE RJ-45 connectors support any 10/100/1000Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it’s compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy 16 Port PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

16 Gigabit POE Ports, 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 1 Console Port

Compatible with IEEE802.3at and IEEE802.3af

Ethernet port supports 10/100/1000M adaptive

Fanless design, natural cooling, compatible with 1U Rack Mount

Support PoE Power Management, PoE watchdog

Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV

SPECIFICATIONS:

AC Input: AC100-240V, 50/60Hz

Ethernet Port: 16 x 10/100/1000Mbps PoE Port, 2 x 1000Mbps SFP Port, 2 x 1000Mbps Uplink Port, 1 x RJ45 Console Port

Bandwidth: 40Gbps

Packet Forwarding rate: 19.76Mpps

DDR SDRAM: 128MB

Flash Memory: 16MB

Packet Neck Scarfer Memory: 4M

MAC Address: 8K

Jumbo frame: 9.6Kbytes

VLANs: 4096

Network Protocols:

IEEE 802.3: Ethernet MAC Protocol

IEEE 802.3i: 10BASE-T Ethernet

IEEE 802.3u: 100BASE-TX Fast Ethernet

IEEE 802.3ab: 1000BASE-T Gigabit Ethernet

IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical ?ber)

IEEE 802.3ad: Standard method for performing link aggregation

IEEE 802.3x: Flow control

IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p: LAN Layer QoS/CoS Protocol Traf?c Prioritization (Multicast ?ltering function)

IEEE 802.1q: VLAN Bridge Operation

IEEE 802.1x: Client/Server Access Control and Authentication Protocol

IEEE 802.1d: STP

IEEE 802.1s: MSTP

IEEE 802.1w: RSTP

PoE protocol: IEEE802.3af (15.4 W), IEEE802.3at (30 W)

Network Media: 10BASE-T: Cat3, 4, 5 or above UTP(?100 M), 100BASE-TX: Cat5 or above UTP(?100 M), 1000BASE-TX: Cat5 or above UTP(?100 M)

Fiber Medium: Multi-mode Fiber: 50/125, 62.5/125, 100/140um, Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um

Working Environment: Operating temperature: -20~50°C, Storage temperature: -40~85°C, Operating Humidity: 10%~90%, No condensation, Storage Humidity: 5%~90%, No condensation, Working height: Up to 10,000 feet, Storage height: Up to 10,000 feet

Indicator: PWR, SYS, PoE, Link/ACT

PWR (Power Indicator): Lighting: Powered, Un-Light: No Power

SYS (System Indicator): Flashing: System Start-up, Lighting: System Running

PoE: Lighting: PoE on, Un-Light: PoE off

Link/ACT: Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect

VLAN: 1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software)

Default: All ports can communicate with each other, PoE Watchdog is closed

Extend: 13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software)

Reset: Short press restart, long press 5 seconds to restore factory Settings

WHAT’S IN THE BOX:

Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 Uplink+2 FSP slots x1- Command Your Network, Elevate Connectivity: Transform Your Infrastructure with Our Networking Switches – Precision-Engineered for Unmatched Performance, Redefining the Backbone of Seamless Data Flow
