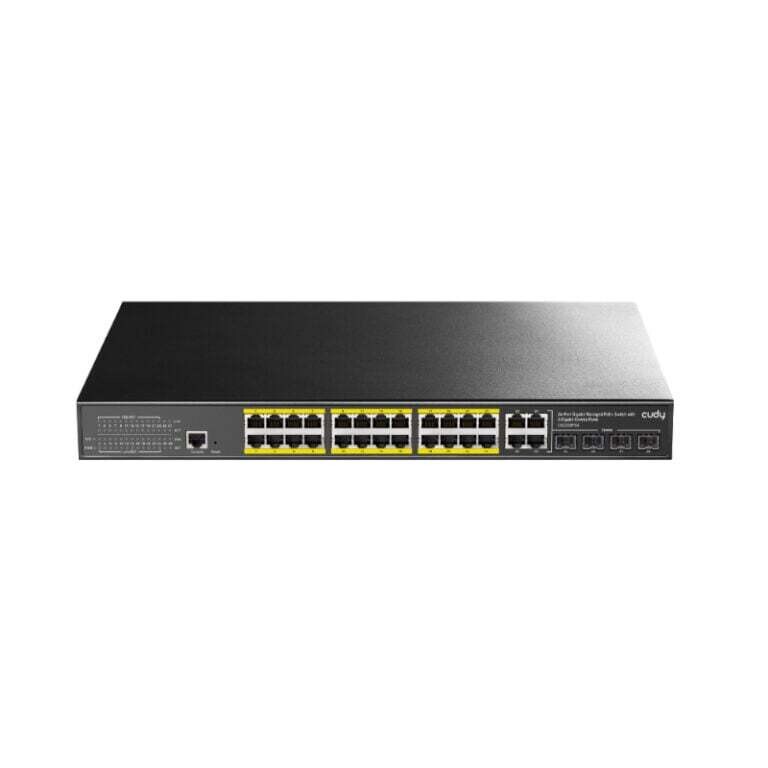

Cudy- GS2028PS4- Cudy 24 Port Layer 2 Managed Gigabit PoE Switch

Cudy- GS2028PS4- Cudy 24 Port Layer 2 Managed Gigabit PoE Switch- The Cudy 24-Port Managed Gigabit PoE+ Switch with 4 Gigabit Combo Ports allows you to manage your home or office network with ease. It features 24 Ethernet PoE ports with 4 x Gigabit combo ports and 1 x Console port. Its PoE RJ-45 connectors support any 10/100/1000Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it’s compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy 24-Port Managed Gigabit PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

24 Gigabit POE Ports, 4 Gigabit Combo Ports, 1 Console Port

Compatible with IEEE802.3at and IEEE802.3af

Ethernet port supports 10/100/1000M adaptive and POE functions

Fanless design, Natural Cooling, 1U Rack Mount

Support WEB, TELNET, CLI, SSH, SNMP, RMON management

Support POE Power Management

Lightning Protection Surge

SPECIFICATIONS:

Technical Indicators:

Bandwidth: 56Gbps (non-blocking)

Packet Forwarding rate: 41.66Mpps

Packet Neck Scarfer Memory: 4M

Memory Capacity: 128MB

Flash Capacity: 16MB

Jumbo frame: 9.6Kbytes

VLANs: 4096

MAC: 8K

Forwarding Mode: Store-And-Forward

Interface:

24 x 10/100/1000M POE Ports + 4 x Gigabit SFP/TP Combo Ports + 1 x Console Port

Network Protocols:

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab/ad/az/af/at

IEEE 802.3x

IEEE 802.1q

IEEE 802.1p, QoS

IGMP Snooping

PoE Parameters:

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

POE port output: DC48-55V

Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)

Port Lightning Protection:

General Mode 6KV

Differential Mode 4KV

ESD 15KV

Network Transmission Medium:

10BASE-T: Cat3, 4, 5 UTP (? 100 m)

100BASE-TX: UTP (?100 m) above Cat5

1000BASE-TX: UTP (?100 m) above Cat5

Optical:

Multimode fiber: 1310nm, 2Km

Single-mode fiber: 1310nm, 20/40 Km, 1550nm, 60/80/100/120Km

The LED indicator:

SYS, PWR, Link (lines 2, 4) / Act (lines 1, 3)

Power Supply:

Machine input voltage: AC110-240V

Output: DC52V 5.76A

Total power: 300W

Working Environment:

Operating Temperature: -20° ~ 55 °C

Storage Temperature: -40 ° ~ 85 °C

Operating Humidity: 10% ~ 95%, non-condensing

Working height: up to 10,000 feet (3,000 meters)

Storage height: up to 10,000 feet (3,000 meters)

Product Dimensions: 44.5 x 28.5 x 4.5 cm- Command Your Network, Elevate Connectivity: Transform Your Infrastructure with Our Networking Switches – Precision-Engineered for Unmatched Performance, Redefining the Backbone of Seamless Data Flow
