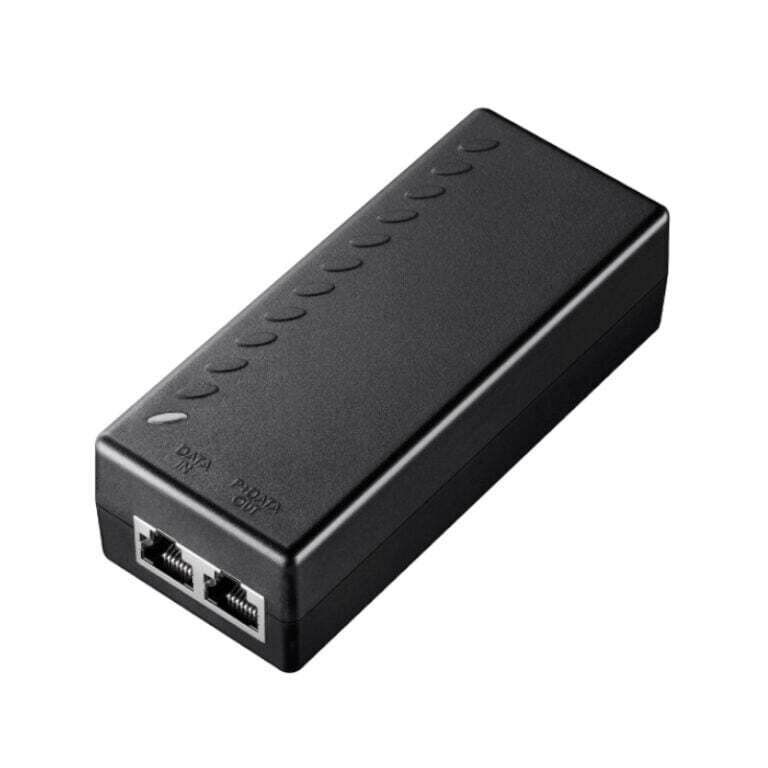

Cudy- POE200- Cudy 30W Gigabit PoE+ Injector

Cudy- POE200- Cudy 30W Gigabit PoE+ Injector- The Cudy POE200 30W Gigabit PoE+/PoE Injector allows you to easily supply power and data to a single PoE device. It features a Gigabit Ethernet input port and a Gigabit PoE output port. It’s a great option for small surveillance systems or a VOIP phone or a WiFi AP.

The 2 port switch supports 30W total PoE power on the PoE output port. It complies with IEEE802.3af/at Standard speeds for great performance. The Injector is powered by an AC power adapter and can be easily mounted to a wall.

Used for many applications the Cudy POE200 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use.

FEATURES:

Up to 30W Power Supply

Supports 10/100/1000 Base-T applications

LED indicators power input and PoE output

Internal AC/DC converter no need for an external power brick

Easy plug-and-play installation

Muti-protection

SPECIFICATIONS:

No. of channels: 1

Pass-Through Data Rates: 10/100/1000Mbps

Power over Ethernet Output:

Pin Assignment and Polarity: 1/2 (-), 3/6 (+)

Output Power Voltage: 54Vdc

User Port Power: 30W max

Input Power Requirements:

AC Input Voltage: 100 to 240 VAC

AC Input Current: 0.5A 100-240 VAC

AC Frequency: 50 to 60 Hz

Indicators:

System Indicator: AC Power

User Indicator: Channel Power

Connectors: Shielded RJ-45, EIA 568A and 568B

Protection

Over-current protection

Over-load protection

Over-voltage protection

Anti-interference protection

Product Dimensions: 12.1 x 5 x 3.6 cm

WHAT’S IN THE BOX :

Cudy POE200 30W Gigabit PoE+/PoE Injector – Black x1

Power Adapter x1- Command Your Network, Elevate Connectivity: Transform Your Infrastructure with Our Networking Switches – Precision-Engineered for Unmatched Performance, Redefining the Backbone of Seamless Data Flow
