FSP FSP030-DHAN3 FSP PSU 30W 2.5MM 12V 2.5A Adapter

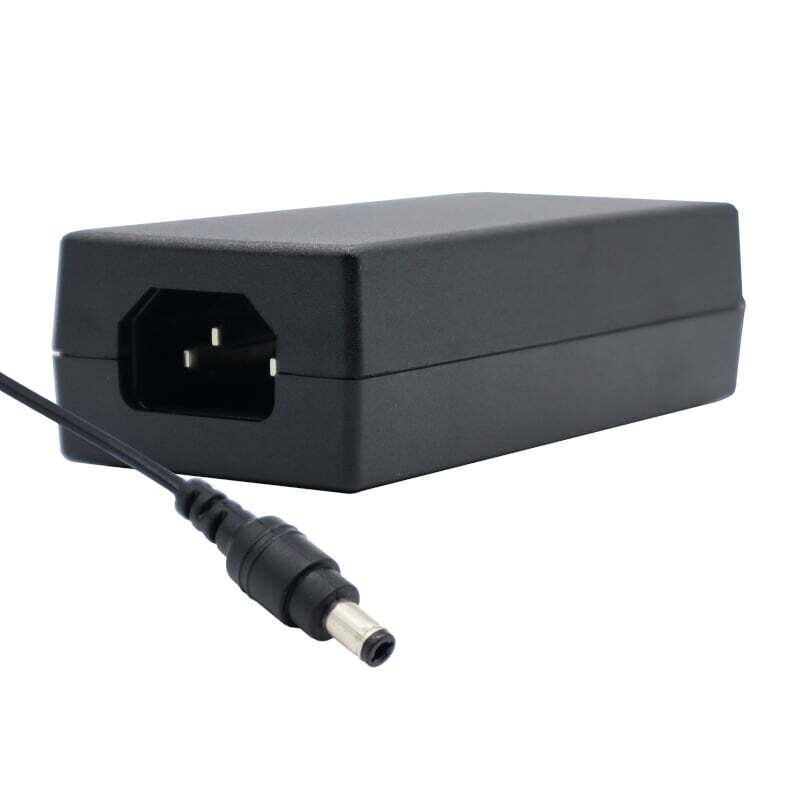

FSP FSP030-DHAN3 FSP PSU 30W 2.5MM 12V 2.5A Adapter The FSP 30W AC to DC 12V 2.5mm Adapter is a 30 watts AC to DC power supply intended for use in IPC systems, embedded systems, IPC Systems, Embedded Systems, Printers, Monitors and POS Systems, etc. that have high wattage demands. This adapter operates at 90 to 264 VAC input voltage. The unit meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application.

FEATURES:

Meet IEC 62368-1 & IEC 60950-1

Meet Energy Efficiency DOE Level VI

Meet Code of Conduct Version 5 Tier 2

High Reliability

EMC Standard: EN55032/ EN55024 Class B

Over Current Protection

Over Temperature Protection

Over Voltage Protection

SPECIFICATIONS:

Output Voltage: 12V

Output Current: 2.5A

Input voltage: 90-264 VAC

Input frequency: 47-63 Hz

Input current: 100Vac, 240Vac / full load ? 1.0A

No load power consumption: 115Vac , 230Vac ? 0.075W

Touch current: 264Vac / 50Hz ? 0.25mA

Cable Gauge: 20AWG

Cable Length: 150cm

Connector: 2.5mm

Colour: Black

WHAT’S IN THE BOX:

FSP 30W AC to DC 12V 2.5mm Adapter – Black x1 Unleash Uninterrupted Potential – Fuel your creativity on the go with our notebook power supplies. Compact, powerful, and designed for reliability – empower your notebook with a constant flow of energy wherever your ideas take flight.
