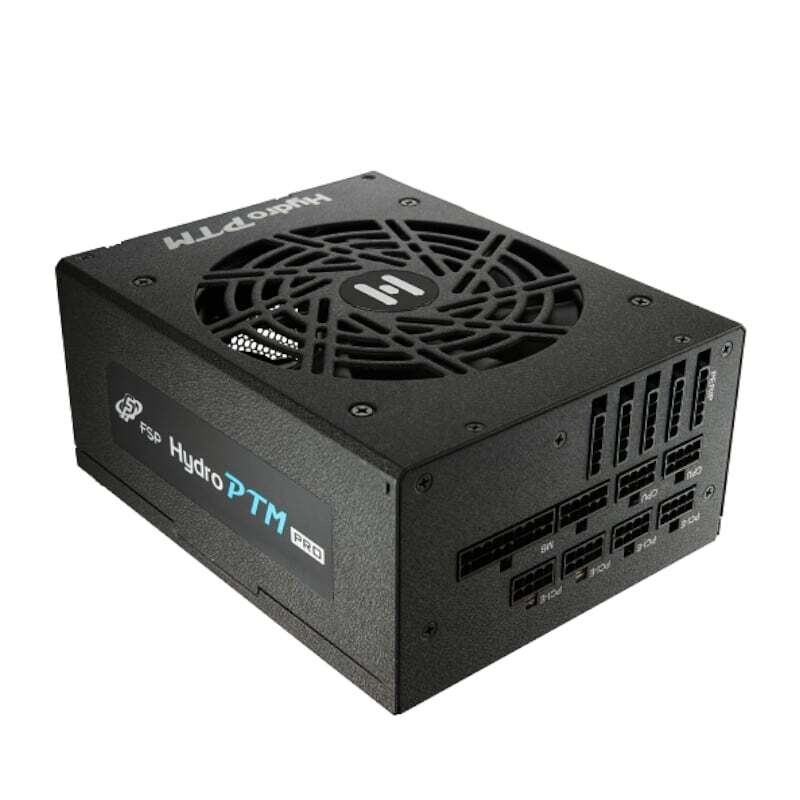

FSP- PPA12A1001- FSP Hydro G PRO 1200W Modular PSU

FSP- PPA12A1001- FSP Hydro G PRO 1200W Modular PSU- Compared to the previous generation, Hydro PTM PRO is an IEC62368 certified PSU that has been greatly improved in its safety design as well as a more compact dimension without compromising its efficiency. It comes with exclusive Off-Wet technology “conformal coating”, which protects the power supply and its internal components from dust, humidity, stains for harsh environments, the Hydro PTM PRO series is tested to work perfectly even in 95% relative humidity.

The HYDRO PTM Pro series adheres to an extremely tight voltage regulation that produces an output voltage under +/- 1% at any load change and offers superior efficiency and voltage stability. The fully modular design simplifies installation and allows you to use only the cables you need for a cleaner and tidier build. The Hydro PTM PRO series offers an Eco Switch that allows the PSU to operate quieter uses up less power consumption. When the power supply is equal to or less than 30% load, the power supply enters a silent state and the fan is turned off.

FEATURES:

Intel Latest CPU ready

Global Safety Approved

High efficiency ? 92%

Powerful +12V single rail design

Quiet and durable cooling

Full Japanese electrolytic capacitors

Compliance with newest ATX 12V V2.52 & EPS 12 v2.92 standards

Intelligent fan speed control circuit design

Full protections OCP,OVP, SCP,OPP,OTP, UVP

High Wattages with 80PLUS® Platinum Certification

Unique product ID with changeable side stickers for DIY enthusiasts and gamers

SPECIFICATIONS:

Model: HPT2-1200M

Rated Output Power: 1200W

Form Factor: ATX

80 PLUS Certification: Platinum

Input Voltage: 100-240V

Input Current: 14-9A

Input Frequency: 50-60Hz

PFC: Active PFC

Efficiency: ? 92%

Fan Type: FDB Fan, 135mm

Protection: OCP, OVP, SCP, OPP, OTP, UVP

Connectors

ATX 20+4: 1

4+4 PIN: 3

PCI-E 6+2: 8

SATA: 14

Molex(PERIPHERAL): 5

Floppy: 1

Dimensions: 15 x 19 x 8.6 cm

WHAT’S IN THE BOX:

FSP Hydro PTM Pro 1200W Platinum Modular Power Supply x1- Empower Your System, Unleash Reliability: Elevate Your Build with Our Power Supplies – Delivering Seamless Performance, Unmatched Efficiency, and the Trusted Backbone Your Rig Deserves.
