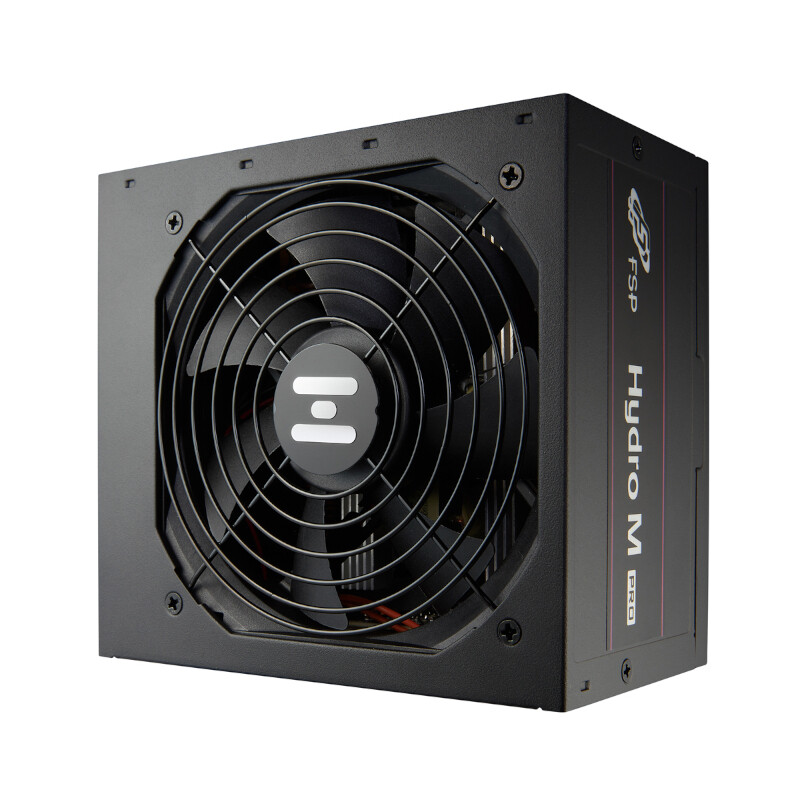

FSP- PPA7005005- FSP Hydro Pro M 700W Semi-Modular PSU

FSP- PPA7005005- FSP Hydro Pro M 700W Semi-Modular PSU- The FSP Hydro M Pro 700W ATX Semi-Modular Power Supply features a semi-modular design with all-black coating ribbon cables that give your system a superior look. The Hydro M Pro is equipped with a 120mm hydraulic bearing fan (HYB) which makes for optimum cooling and reduces noise. Moreover, the lifespan of the fan is longer than the standard one. With a 230V 80 Plus ®rating, the Hydro M Pro series delivers over 88% high efficiency making it very reliable.

The Hydro M Pro series applies DC to DC modules to improve the reliability for greater compatibility as well as low ripple noise to reduce interference of system components for a prolonged system lifetime. The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, and peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

FEATURES:

Complies with ATX12 v2.52 & EPS12 V2.92

Efficiency? 88% @ typical load

Active PFC ? 0.9

Hold up time ? 17ms @ 80% Load

Semi-modular design with ribbon cables

450V, 105°C capacitors for a long product life cycle

120mm hydraulic bearing (HYB) fan

+5V & 3.3V DC to DC module design

+12V Single-Rail Design

Complete protections: OCP/OVP/OPP/SCP

SPECIFICATIONS:

Rated Output Power: 700W

Form Factor: ATX

80 PLUS Certification: 80 PLUS® 230V EU Bronze

Input Voltage: 200-240V

Input Current: 5A

Input Frequency: 50-60Hz

PFC: Active PFC

Efficiency: 88%

Fan Type: HYB Fan, 12 cm

Protection: OCP, OVP, OPP, SCP

Cable Connections:

ATX 20+4 x 1

4+4 PIN x 2

PCI-E 6+2 x 4

SATA x 8

Molex (PERIPHERAL) x 3

Floppy x 1

Dimensions: 15 x 14 x 8.6 cm

WHAT’S IN THE BOX:

FSP Hydro M Pro 700W ATX Semi-Modular Power Supply – Black x1- Empower Your System, Unleash Reliability: Elevate Your Build with Our Power Supplies – Delivering Seamless Performance, Unmatched Efficiency, and the Trusted Backbone Your Rig Deserves.
