Giada- D611-N1-1115G4H0G-GIA- Giada D611 I3 1115G4 2xDDR4 3200Mhz

Giada- D611-N1-1115G4H0G-GIA- Giada D611 I3 1115G4 2xDDR4 3200Mhz- The Giada D611 Core-i3 High-end Digital Signage Player is a high-performance signage player that supports a 4K display. Its Intel Core i3-1115G4 processor offers great performance to the mini PC and allows for it to push even further when required. This signage player runs on Intel® 11th UHD Graphics and has two HDMI outputs and one DisplayPort, these ports can be used simultaneously at up to 4K or the DisplayPort can be used at up to 8K resolution, all at 60Hz. It supports DDR4 memory up to 32GB running at 3200MHz to get a good performance boost.

It can be used in many different scenarios from POS, to signage displays to the office, and because of its compact size, if used in an office environment, makes it easy to mount behind a monitor if needed to save up on desk space.

FEATURES:

High-speed Intel CPU

1 x DP, 2 x HDMI, Supporting 8K Display

2 x SO-DIMM DDR4 Memory, Up to 32GB

1 x M-key M.2 (2242/2280) for SSD

Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

Compact size that’s easy to mount

SPECIFICATIONS:

Processor:

CPU: Intel®Core™ i3-1115G4

BIOS: AMI Source Code

Chipset: SOC

Memory:

Type: DDR4-3200MHz

Socket: 2 x SO-DIMM

Max Size: 32GB

Graphics:

GPU: Intel® 11th UHD Graphics

Graphic Engine: DirectX 12, OpenGL 4.5, OpenCL 2.2 8K60 12b 4:2:0 HEVC/VP9/SCC

DP: 1 x DP (Max.7680 x 4320 @60Hz)

HDMI: 1 x HDMI (Max.4096×2304 @60Hz)

HDMI: 1 x HDMI (Max.4096×2304 @60Hz)

Network:

Controller: Realtek 8111G Gigabit Ethernet

Interface: 1 x RJ45

Storage:

M.2: 1 x M-key M.2 (2242/2280) for NVMe

I/O:

USB: 1 x USB3.2 Gen2, 2 x USB2.0

USB Type-C: 1 x USB Type-C3.2 Gen2

Serial Port: 1 x RS232

Audio: 1 x AUDIO-OUT, 1 x MIC-IN

Mini-PCIe: 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G

Wireless:

1 x E-key M.2 (2230) for WiFi/BT

1 x B-key M.2 (3052) for 3G/4G/5G

SIM: 1 x SIM Slot

TPM: Infineon TPM 2.0

JAHC Tech:

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On: Power Activated Automatically Start

Remote Control: By IR Controller for Power On

Operation System:

Windows: Windows 10 IoT Core

Linux: Support

Power:

Power Type: DC-IN

Input Voltage: 12V / 19V

Mechanical

Construction: Metal

Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)

Colour: Black

Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

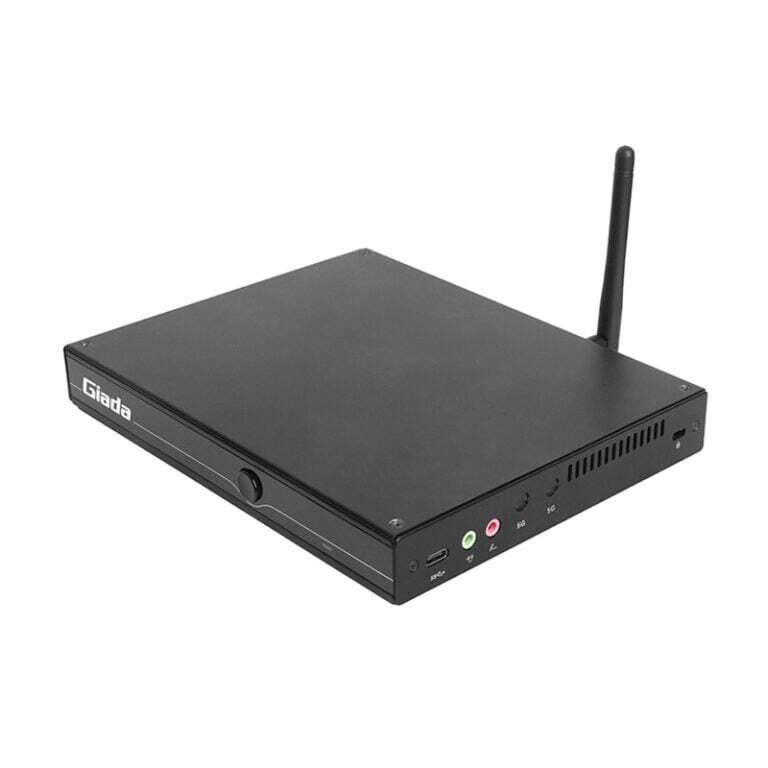

Giada D611 Core-i3 High-end Digital Signage Player – Black x1

WiFi Antenna x1
