Giada- D612-1235U40N0G-GIA- Giada D612 i5-1235U 2x DDR4 3200Mhz

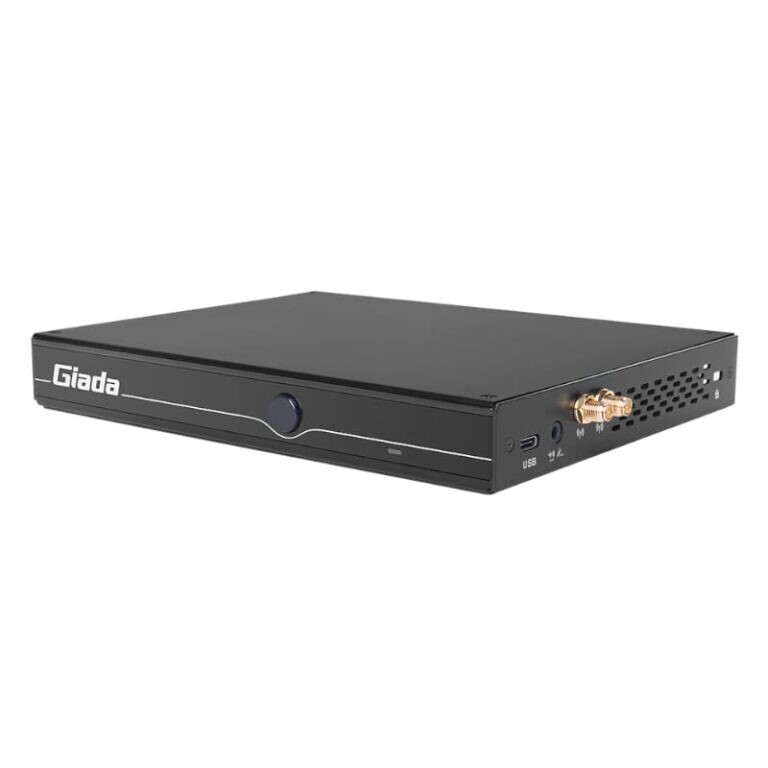

Giada- D612-1235U40N0G-GIA- Giada D612 i5-1235U 2x DDR4 3200Mhz- The Giada D612 Intel Core i5 High-end Digital Signage Player is an embedded computer that is excellent for jobs in hospitality, retail, commercial, service, and advertising. Its small and powerful design provides enterprises with the performance and efficiency of the Intel® Core™ i5-1235U processor, as well as four HDMI connections that support up to 4K resolution. Its HDMI, USB connections, gigabit Ethernet, WiFi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards make it extremely adaptable. It may also be installed in a variety of ways and simply hidden behind a monitor or big format display thanks to its VESA mount capability.

FEATURES:

Intel® Core™ i5-1235U processor

4 x HDMI, Supporting 4K Display

2 x SO-DIMM DDR4 Memory, Up to 64GB

1 x M-key M.2 (2242/2280) for SSD

Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

Processor:

CPU: Intel® Core™ i5-1235U processor

Frequency: 3.30 GHz (Up to 4.40 GHz )

Cores: 10

BIOS: AMI EFI 64 Mbit

Memory:

Type: DDR4-3200MHz

Socket: 2 x SO-DIMM

Max Size: 64GB

Graphics:

GPU: Intel® IRIS® Xe Graphics

Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC

HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)

Network:

Controller: 1 x Intel® i219LM Gigabit Ethernet

Interface: 1 x RJ45

Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot

Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

I/O:

USB: 1 x USB3.2 Gen2, 2 x USB2.0

USB Type-C: 1 x USB Type-C3.2 Gen2

Serial Port: 1 x RS232

Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)

Button: 1 x Power on, 1 x CLR-CMOS

Storage:

M.2: 1 x M-key M.2 (2242/2280) for NVMe

JAHC Tech:

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On: Power Activated Automatically Start

Operation System:

Windows: Windows 11 (64bit)

Linux: Linux Ubuntu (64bit)

Power:

Power Type: DC-IN

Input Voltage: 12V/19V

Environment:

Operating Temperature: 0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow

Relative Humidity: 95%@40? (non-condensing)

Certification: CE, FCC Class B, CCC

Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)

Construction: Metal

Colour: Black

Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

Giada D612 Intel Core i5 High-end Digital Signage Player – Black x1

WiFi Antenna x2

User Manual x1- Elevate Your Business Potential: Unleash Efficiency and Reliability with Our Commercial PC Systems – Tailored Solutions for Seamless Productivity, Redefining the Landscape of Corporate Computing.
