Giada- DF610-10110U40M0G-GIA- Giada D610 I3 10110U 2xDDR4 2400Mhz

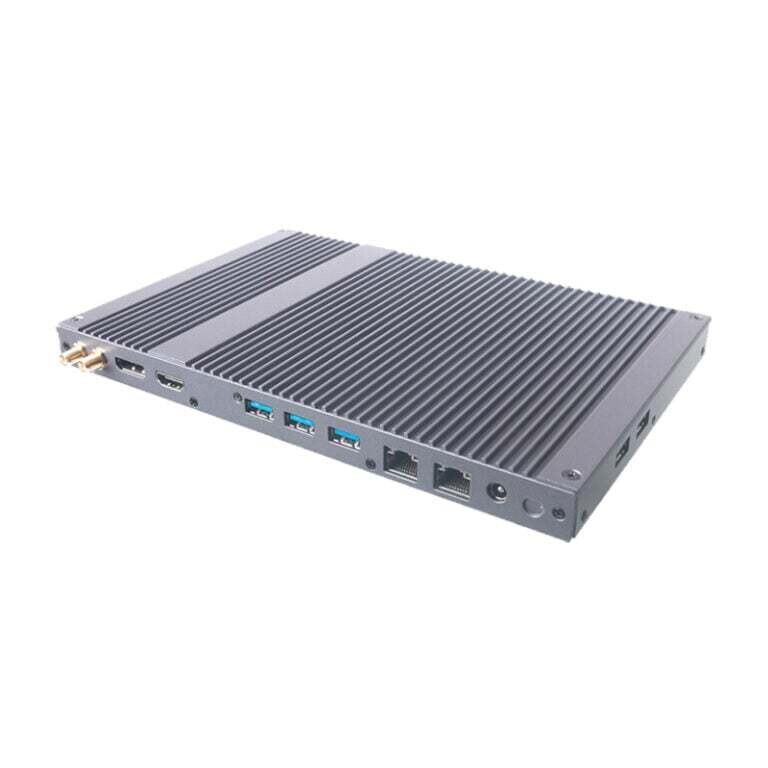

Giada- DF610-10110U40M0G-GIA- Giada D610 I3 10110U 2xDDR4 2400Mhz - The Giada DF610 i3-10110U Comet Lake High-end Fanless Player is an embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and powerful design brings organizations all the performance and efficiency of the Intel®Core™ i3-10110U CPU, plus one HDMI port and a DisplayPort output with up to 4K resolution support. Its HDMI, DisplayPort, USB ports, gigabit LAN, Windows and Linux OS support, and support for M.2 SSDs and mini-PCIe 3G, and 4G cards make it very versatile. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.

FEATURES:

Intel(R) Core™ i3-10110U CPU

1 x DP, 1 x HDMI, Supporting 4K Display

2 x SO-DIMM DDR4 Memory, Up to 32GB Support

1 x M-key M.2 (2242/2280) for SATA/NVMe

1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G

SPECIFICATIONS:

Processor:

CPU: Intel(R) Core™ i3-10110U

BIOS: AMI Source Code

Chipset: SOC

Memory:

Type: DDR4-2400MHz

Socket: 2 x SO-DIMM

Max Size: 32GB

Graphics:

GPU: Intel® 10th Gen. UHD Graphics

Graphic Engine: Direct3D 2015, OpenGL 4.5, OpenCL 2.1

DP: 1 x DP (Max.4096 x 2304 @60Hz)

HDMI: 1 x HDMI (Max.4096×2304 @60Hz)

Network:

Controller: 2 x Realtek 8111G Gigabit Ethernet

Interface: 2 x RJ45

I/O:

USB: 5 x USB 3.2 Gen2 (10 Gbps)

Serial Port: 1 x RS232

Audio: 1 x AUDIO-OUT, 1 x MIC-IN

Mini-PCIe: 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G

M.2(2230): 1 x M.2(2230) for WiFi

SIM: 1 x SIM Slot

Storage

M.2: 1 x M.2(2242/2280) for SSD

JAHC Tech:

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On: Power Activated Automatically Start

Remote Control: By IR Controller for Power On

RTC: Set Up Independently Every day, A Week as a Cycle

Wake On Lan: Yes

Operating System:

Windows: Windows 10?64-Bit?

Linux: Support

Power:

Power Type: DC-IN

Input Voltage: 19V / 3.42A

Environment:

Operating Temperature: 0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow

Relative Humidity: 95%@40? (non-condensing)

Certification: CE, FCC Class B, CCC

Mechanical:

Construction: Metal

Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ300)

Colour: Black

Product Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

Giada DF610 i3-10110U Comet Lake High-end Fanless Player x1

WiFi Antenna x2

User Manual x1- Elevate Your Business Potential: Unleash Efficiency and Reliability with Our Commercial PC Systems – Tailored Solutions for Seamless Productivity, Redefining the Landscape of Corporate Computing.
