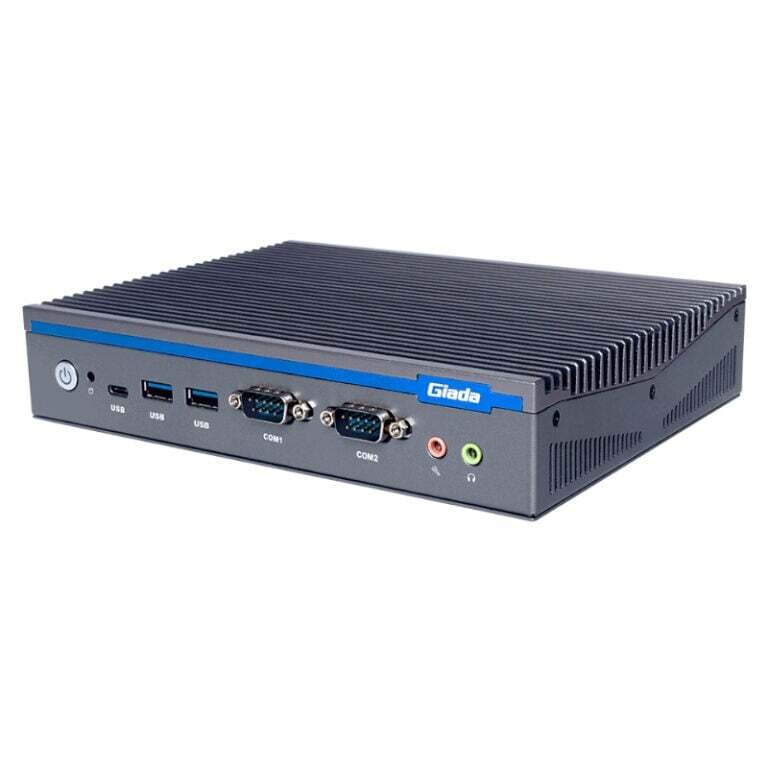

Giada- DF612-1215U40N0G-GIA- Giada DF612 i3-1215U 2x DDR4 3200Mhz

Giada- DF612-1215U40N0G-GIA- Giada DF612 i3-1215U 2x DDR4 3200Mhz- The Giada DF612 Intel Core i3 is a high-end digital signage player that is ideal for work in hospitality, retail, commercial, service, and advertising. Its small and powerful design gives businesses the performance and efficiency of the Intel®CoreTM i3-1215U CPU, as well as two HDMI connectors that enable up to 4K resolution and one DisplayPort connection that supports up to 8K resolution. It is incredibly customizable because of its HDMI, USB ports, gigabit Ethernet, WiFi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards. Because of its VESA mount flexibility, it may also be mounted in a variety of ways and simply hidden behind a monitor or large format panel.

FEATURES:

Intel®Core™ i3-1215U processor

1 x DisplayPort, Supporting 8K, 2 x HDMI, Supporting 4K Display

2 x SO-DIMM DDR4 Memory, Up to 64GB

1 x M-Key M.2 (2242/2280) for PCIe SSD

Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

Processor:

CPU: Intel® Core™ i3-1215U processor

Frequency: 3.30 GHz (Up to 4.40 GHz )

Cores: 6

BIOS: AMI EFI 64 Mbit

Memory:

Type: DDR4-3200MHz

Socket: 2 x SO-DIMM

Max Size: 64GB

Graphics:

GPU: Intel® UHD Graphics

Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC

HDMI: 2 x HDMI (Max.4096 x 2304 @60 Hz)

DisplayPort: 1 x DP (Max.7680 x 4320 @60 Hz)

Network:

Controller: 1 x Intel® i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet

Interface: 2 x RJ45

Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot

Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

I/O:

USB: 4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

USB Type-C: 1 x USB Type-C3.2 Gen2 (10 Gbps),

Serial Port: 1 x RS232, 1 x RS232/422/485

Audio: 1 x MIC-IN, 1 x AUDIO-OUT

Button: 1 x Power on, 1 x CLR-CMOS

Antenna: 2 x Connector for Wi-Fi/BT, 2 x Connector for 3G/4G (Reserved)

Storage:

M.2: 1 x M-Key M.2 (2242/2280) for PCIe SSD

JAHC Tech:

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On: Power Activated Automatically Start

Operation System:

Windows: Windows 11 (64bit)

Linux: Linux Ubuntu (64bit)

Power:

Power Type: DC-IN

Input Voltage: 12V/19V

Environment:

Operating Temperature: 0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow

Relative Humidity: 95%@40? (non-condensing)

Certification: CE, FCC Class B, CCC

Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)

Construction: Metal

Colour: Black

Dimensions: 20 x 15 x 4 cm

WHAT’S IN THE BOX:

Giada DF612 Intel Core i3 High-end Digital Signage Player – Black x1

WiFi Antenna x2

User Manual x1- Elevate Your Business Potential: Unleash Efficiency and Reliability with Our Commercial PC Systems – Tailored Solutions for Seamless Productivity, Redefining the Landscape of Corporate Computing.
