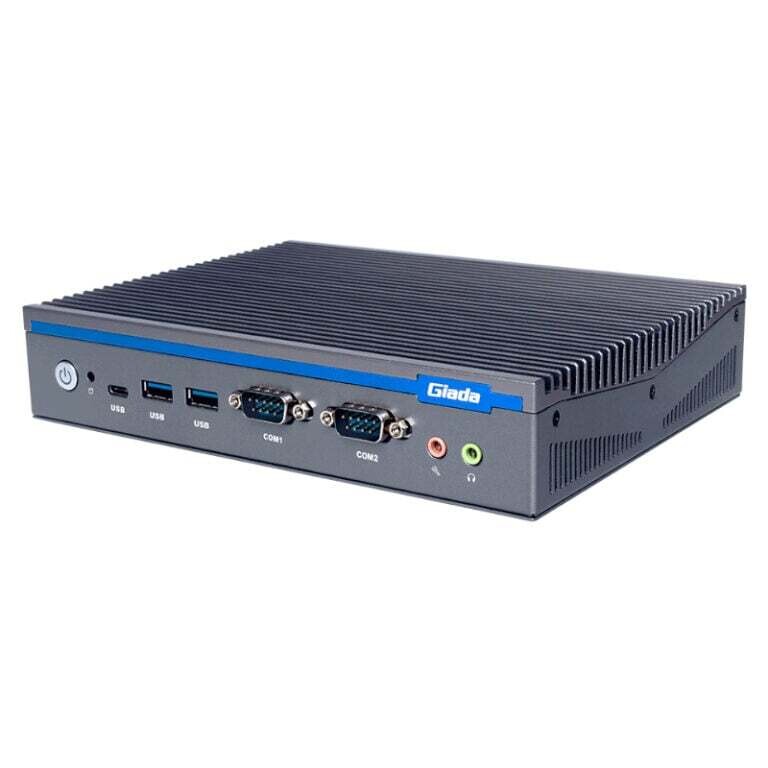

Giada- DF612-1235U40N0G-GIA- Giada DF612 i5-1235U 2x DDR4 3200Mhz

Giada- DF612-1235U40N0G-GIA- Giada DF612 i5-1235U 2x DDR4 3200Mhz- The Giada DF612 model incorporates Intel’s 12th-Gen processors, specifically the i5-1235U. These processors offer a significant performance boost of 19 percent compared to the current 11th-gen “Rocket Lake” processors. The DF612 model is equipped with the Intel vPro and TPM 2.0 features, which provide enhanced productivity, remote manageability, and data security.

The DF612 model is compatible with Intel® integrated Iris® Xe GPU, specifically for Core i5 and i7 processors. The device has the capability to deliver a maximum resolution of 8K (7680 x 4320@60 Hz) through its DP1.4 port. It can support two 4K displays (4096 x 2304@60Hz) using its two HDMI2.0 ports. It is an excellent option for large-format displays and kiosks used 24/7.

The fanless design of a passive thermal cooling system reduces the failure rate and ensures that the device operates silently and remains dust-free. The Giada® device is designed to be used in mission-critical applications.

FEATURES:

Intel® Core™ i5-1235U processor

4 x HDMI, Supporting 4K Display

2 x SO-DIMM DDR4 Memory, Up to 64GB

1 x M-key M.2 (2242/2280) for SSD

Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

Processor:

CPU: Intel® Core™ i5-1235U processor

Frequency: 3.30 GHz (Up to 4.40 GHz )

Cores: 10

Memory:

Type: DDR4-3200MHz

Socket: 2 x SO-DIMM

Max Size: 64GB

Graphics:

GPU: Intel® UHD Graphics

Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC

HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)

Network:

Controller: 1 x Intel® i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet

Interface: 2 x RJ45

Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot

Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

I/O:

USB: 4 x USB3.2 Gen2, 2 x USB2.0

USB Type-C: 1 x USB Type-C3.2 Gen2

Serial Port: 1 x RS232, 1 x RS232/422/485

Audio: 1 x Mic-In, 1 x Audio-Out

Button: 1 x Power on, 1 x CLR-CMOS

Storage:

M.2: 1 x M-key M.2 (2242/2280) for NVMe

JAHC Tech:

WatchDog Timer: Yes

Auto Power On: Yes

Operation System:

Windows: Windows 11 (64bit)

Linux: Linux Ubuntu (64bit)

Power:

Power Type: DC-IN

Input Voltage: DC-IN, 19 V/3.42 A

Environment:

Operating Temperature: 0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow

Relative Humidity: 95%@45? (non-condensing)

Certification: CE, FCC Class B, CCC

Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)

Construction: Metal

Colour: Black

Dimensions: 20 x 15 x 4.0 cm

WHAT’S IN THE BOX:

Giada DF612 Intel Core i5 Embedded Computer – Grey x1

WiFi Antenna x1

User Manual x1- Elevate Your Business Potential: Unleash Efficiency and Reliability with Our Commercial PC Systems – Tailored Solutions for Seamless Productivity, Redefining the Landscape of Corporate Computing.
