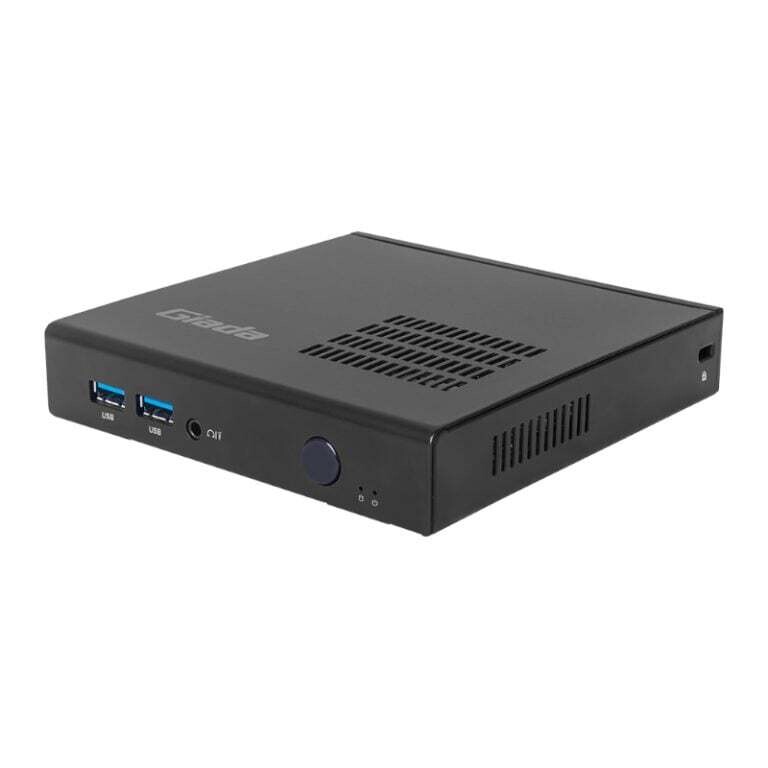

Giada- DK310-J642642M0G-GIA- Giada DK310 Pentium J6426 4GB

Giada- DK310-J642642M0G-GIA- Giada DK310 Pentium J6426 4GB- The ultra-slim Giada DK310 Intel Celeron J6426 Signage Player is equipped with Elkhart Lake embedded processors, including the low TDP (10W) Celeron J6426. The Elkhart Lake platform has up to 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance generation over generation. The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors and has up to 2X performance improvement in graphics over previous generations. It supports vivid dual 1080p or dual UHD video playback via HDMI 2.0a (4096 x 2160@60Hz) and DisplayPort 1.2 (4096 x 2160@60Hz) ports.

FEATURES:

Elkhart Lake processor

4GB memory

Intel UHD onboard graphics

Up to 4k resolution support

Support for Wi-Fi/Bluetooth module

Small form factor design

SPECIFICATIONS:

CPU: Intel® Celeron® J6426 processor

CPU Frequency: 3.00GHz

Chipset: SoC

CPU Processing Units: 4 Cores

CPU TDP: 10W

System Memory: 4 GB, Onboard LPDDR4-2666MHz

Storage: 1 x Full-size Mini-PCIe for MSATA

GPU: Intel® UHD Graphics

Graphic Engine: DirectX, OpenGL, OpenCL, Intel® Quick Sync Video

Multi-media: 4kp60 8-bit H.264 decode, 4kp60 8-bit and 10-bit H.265/HEVC decode, up to 4kp60 VC1, VP8, VP9 decode, 1080p60 MPEG2 decode

Display Interface: 1 x DP (Max.3840 x 2160 @60 Hz), 1 x HDMI (Max.3840 x 2160 @60 Hz)

Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet

Ethernet Interface: 1 x RJ45

Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6

USB: 4 x USB3.2 Gen2 (10Gbps)

Serial Port: 1 x RS232

Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)

Button: 1 x Power on, 1 x CLR-CMOS

Antenna: 2 x Connector for Wi-Fi/BT

Watchdog Timer Yes

Auto Power On Yes

RTC Set up independently every day, a week as a cycle

Power Requirement: DC-IN, 19 V/2.37 A

Construction: Metal

Operating System Support: Windows 10 (64bit) / Windows 11 (64bit) / Linux Ubuntu (64bit)

Product Dimensions: 13 x 12.9 x 2.5 cm

WHAT’S IN THE BOX:

Giada DK310 Intel Celeron J6426 Signage Player – Black x1- Elevate Your Business Potential: Unleash Efficiency and Reliability with Our Commercial PC Systems – Tailored Solutions for Seamless Productivity, Redefining the Landscape of Corporate Computing.
