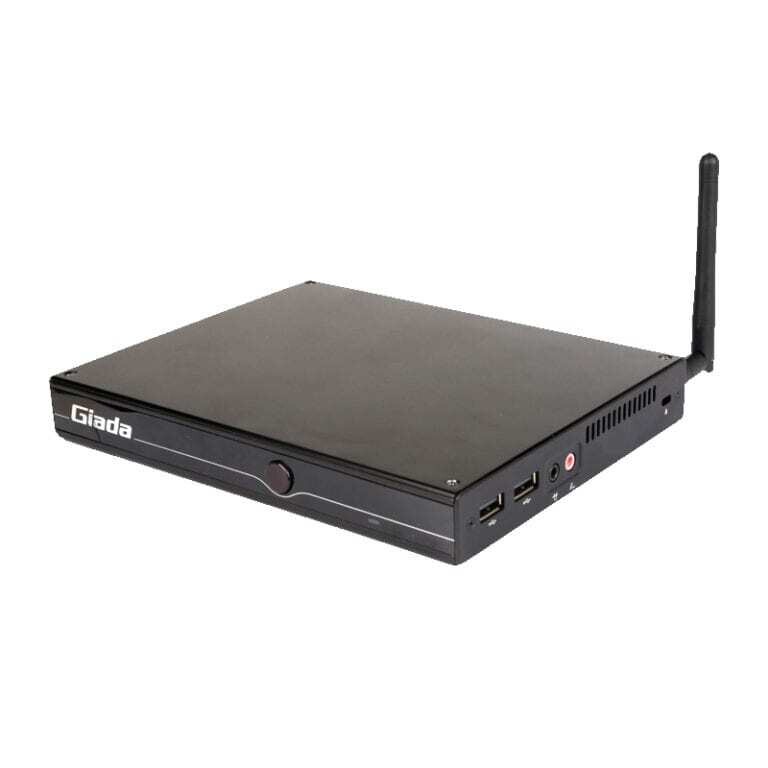

Giada- DM5-R1305G40M0G-GIA- GIADA DM5 R1305G 2xDDR4 MSATA/SATA

Giada- DM5-R1305G40M0G-GIA- GIADA DM5 R1305G 2xDDR4 MSATA/SATA- The Giada DM5 AMD Ryzen Slim Signage Player is a high-performance signage player with that supports 4K display. Its AMD Ryzen R1305G processor offers great performance to the mini PC and allows for it to push even further when required. This signage player has three HDMI outputs, two can of these port be used simultaneously at 4K or all three can be used at 2K resolutions, all of this at 60Hz.

Features:

AMD Ryzen R1305G Processor

Two SO-DIMM DDR4 Slots, supporting up to 32GB

Three HDMI outputs

Supports two 4K displays or three 2K displays

2.5? SATA and MSATA slots

Two USB3.1 slots and two USB2.0

RS232 Serial port

RJ45 Network port

Mini-PCIe for WiFi/BT/3G/4G

SIM Card slot

Specifications:

Processor

CPU: AMD Ryzen™ R1305G

Frequency: 1.5 GHz (Up to 2.8GHz)

BIOS: AMI Source Code

Chipset: SOC

Memory

Type: DDR4-2400MHz

Socket: 2x SO-DIMM

Max Size: 32GB

Graphics

GPU: AMD Radeon™ Vega 3 Graphics

Graphic Engine: DirectX12, OpenGL4.4, OpenCL 1.2

Display

HDMI: 3x HDMI (Supporting 2x 4K (3840×2160)@60Hz OR 3x 2K (1920×1080)@60Hz)

Network

Controller: Realtek RTL8111H Gigabit Ethernet

Interface: 1x RJ45

I/O

USB: 2x USB 3.1 | 2x USB 2.0

Serial Port: 1x RS232

Audio: 1x AUDIO-OUT, 1x MIC-IN

Mini-PCIe#1: 1x Full-size Mini-PCIe for mSATA

Mini-PCIe#2: 1x Full-size Mini-PCIe for 3G/4G/WiFi/BT

SIM: 1x SIM Slot

Storage

SATA: 1x 2.5? SATA

mSATA: 1x Full-size mSATA

JAHC Tech

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On: Power Activated Automatically Start

RTC: Set Up Independently Every day, A Week as a Cycle

Power

Power Type: DC-IN

Input Voltage: 19V/3.42A

Environment

Operating Temperature: 0? ~ 40? at 0.7m/s Air Flow

Relative Humidity: 95% @40? (non-condensing)

Mounting: Wall Mounting and VESA Mounting

Supported Operation Systems: Windows 10 (64-bit) | Linux Ubuntu 18.04 Verified

Certifications: CE, FCC Class B

Dimensions: 18.96 x 14.83 x 2.6 cm

What’s in The Box:

Giada DM5 AMD Ryzen Signage Player x1

AC Power Adapter x1

AC Power Cable x1
