Giada- DM6-V1605B40M0G-GIA- Giada DM6 V1605B 2xDDR4 MSATA/SATA

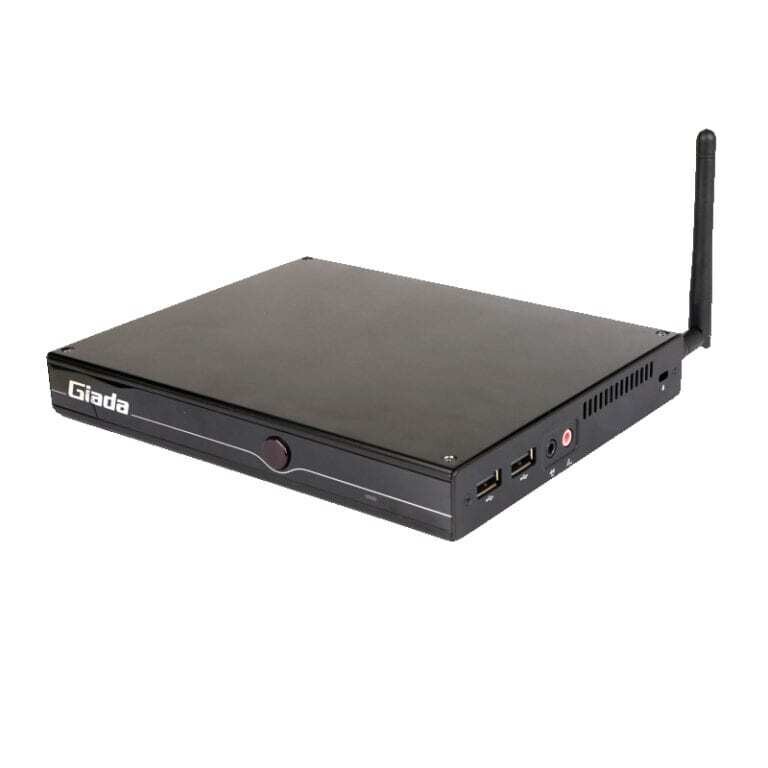

Giada- DM6-V1605B40M0G-GIA- Giada DM6 V1605B 2xDDR4 MSATA/SATA- The cost-effective, book-sized Giada DM6 applies the power and performance of AMD’s Ryzen CPUs to your displays by offering offers smooth and clear 4K video via its four HDMI ports. It can be outfitted with up to 32GB of DDR4 memory and supports both SATA and mSATA storage solutions.

Features:

AMD Ryzen Processors

Two DDR4 SO-DIMMs, up to 32GB

Four HDMI display ports

Supports 4k Display

2.5? SATA and mSATA compatibility

Two USB3.1 ports and two USB2.0 ports

One RS232 Port

RJ45, Mini-PCIe for communication adapaters and a SIM Slot

Specifications:

Processor

CPU: AMD RyzenTM V1605B

Frequency: 2.0 GHz, 4 Core/8 Threads

BIOS: AMI Source Code

Chipset: SOC

Memory

Type: DDR4

Socket 2 x SO-DIMM

Max Size 32GB

Graphics

GPU RadeonTM GPU 1.1GHz / RadeonTM GPU 1.0GHz

Graphic Engine Direct3D 2015, OpenGL 4.5, OpenCL 2.1

HDMI 4 x HDMI (Max.3840 x 2160 @60Hz)

Network

Controller: Realtek RTL8111H Gigabit Ethernet

Interface: 1 x RJ45

I/O

USB: 2 x USB 3.1, 2 x USB 2.0

Serial Port: 1 x RS232

Audio 1 x AUDIO-OUT, 1 x MIC-IN

Mini-PCIe #1 1 x Full-size Mini-PCIe for mSATA

Mini-PCIe #2 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G

SIM 1 x SIM Slot

Storage

SATA: 1 x 2.5? SATA

mSATA: 1 x Full-size mSATA

JAHC Tech

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On Power Activated Automatically Start

RTC Set Up Independently Every day, A Week as a Cycle

Operation System

Windows Windows 10?64-bit?

Linux Supported

Power

Power: Type DC-IN

Input Voltage: 19V/3.42A

Mechanical

Dimensions: (W × D × H) 189.6mm x 148.3mm x 26mm?7.46? x 5.84? x 1.02??

Construction Metal

Mounting Wall Mounting and VESA Mounting (JZ183)

Environment

Operating Temperature 0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow

Relative Humidity 95%@40? (non-condensing)

Certification

Certifications: CE, FCC Class B, CCC

What’s In The Box:

DM6 x1

Drive Disk x1

User Manual x1

AC Power Adapter x1
