Giada DN73 RK3328 Android 7.1 16GB 2GB

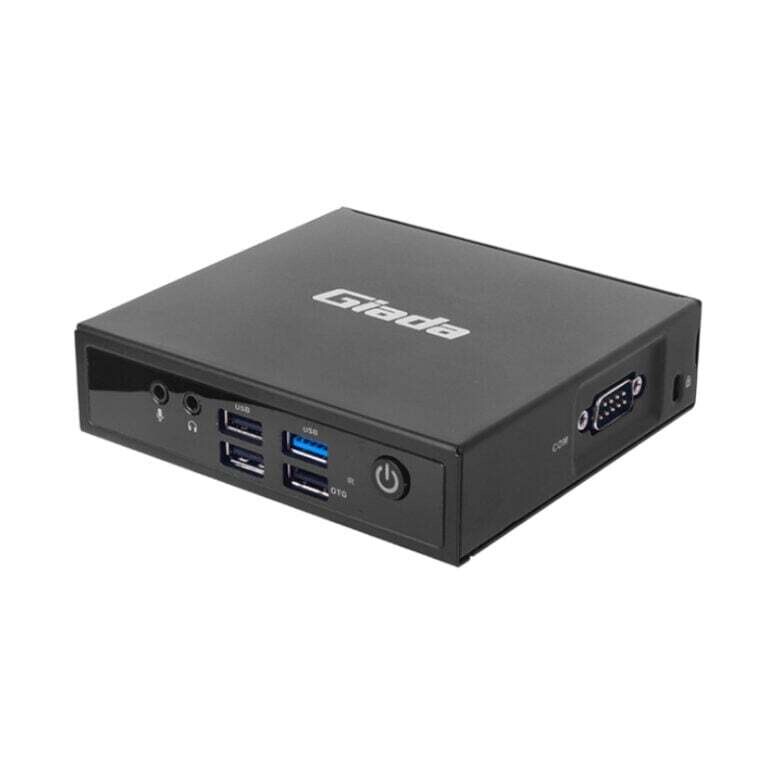

Giada- DN73-N2-3328R31E4-GIA V2- Giada DN73 RK3328 Android 7.1 16GB 2GB- The Giada DN73 is an entry-level embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and fanless design brings organizations all the performance and efficiency of the RK3328 Quad-Core Cortex-A53 CPU, plus an HDMI output with up to 4K resolution support. Its HDMI, USB ports, OTG support, gigabit LAN, Android OS, and support for mini-PCIe 4G cards make it very versatile for a more mobile experience. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.

FEATURES:

RK3328 Quad-core Cortex-A53 up to 1.5GHz

Onboard DDR4 2GB Memory,

1 x HDMI? Supporting 4K 60Hz Display

Onboard eMMC 16GB

1 x USB3.0?2 x USB2.0?1 x USB2.0 OTG?1 x RS232

1 x RJ45?1 x Mini-PCIe for 3G/4G?1 x SIM Slot

SPECIFICATIONS:

Processor:

CPU: RK3328 Quad-core Cortex-A53

Frequency: Up to 1.5GHz

Chipset: SOC

Memory:

Type: DDR4

Socket: Onboard

Max Size: 2GB (Optional: 1GB)

Graphics:

GPU: Mali-450MP2 GPU

Graphic Engine: 4K H.264 30FPS/H.265 video decoder, 2160P video encoder/1080P 60fps video decoders

HDMI: 1 x HDMI (Max. 4K @60Hz)

Network:

Controller: Realtek RTL8211E Gigabit Ethernet

Interface: 1 x RJ45

I/O:

USB: 1 x USB 3.0, 2 x USB 2.0, 1 x USB2.0 OTG

Display Interface: 1 x HDMI

LAN: 1 x RJ45

Serial Port: 1 x RS232

Audio: 1 x MIC-IN, 1 x AUDIO-OUT

Mini-PCIe: 1 x Full-size Mini-PCIe for 3G/4G

SIM: 1 x SIM Slot

WiFi+BT on Board: 1 x WiFi Module Onboard (2.4G, IEEE802.11 a/b/g/n) Optional: WIFI 5G

LED Indicators: 1 x HDD LED, 1 x Power LED

Storage:

eMMC: Onboard eMMC 16GB (Optional: 8GB /32GB/ 64GB)

JAHC Tech:

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On: Power Activated Automatically Start

Remote Control: By IR Controller for Power On

RTC: Set Up Independently Every day, A Week as a Cycle

Operation System:

Android: Android7.1 / Android 10.0

Power:

Power Type: DC-IN

Input Voltage: 12V/2A

Environment:

Operating Temperature: 0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow

Relative Humidity: 95%@40? (non-condensing)

Certification: CE, FCC Class B

Mounting: Desk/Wall Mounting and VESA Mounting Kit (JT-NUC-JC530)

Construction: Metal

Fanless: Yes

Colour: Black

Dimensions: 11.6 x 10.7 x 3 cm

WHAT’S IN THE BOX:

Giada DN73 RK3328 Quad-Core Entry Level Signage Player – Black x1

Power Cable x1
