Giada- DN74-3399R42E5G-GIA V2- Giada DN74 RK3399 4GB DDR4 32GB EMMC

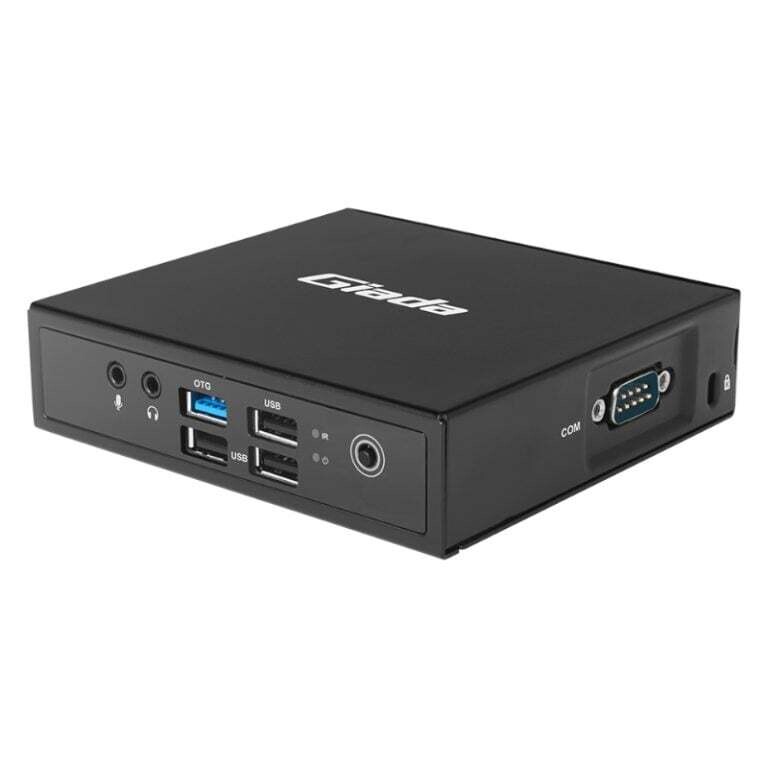

Giada- DN74-3399R42E5G-GIA V2- Giada DN74 RK3399 4GB DDR4 32GB EMMC- The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.

Features:

Rockchip RK3399

Onboard 4GB LPDDR4 memory

Two HDMI ports, one supporting 4K and the other 2K

Onboard eMMC storage of 32GB

One USB3.0 port and three USB2.0 ports

RS232 Serial Port

RJ45 Network connection

Mini-PCIe slot for 3G/4G connectivity

SIM Card slot

Specifications:

Processor

CPU: Rockchip RK3399

Frequency: Up to 1.8GHz

Processing Units: 2 Cores Cortex-A72 & 4 Cores Cortex-A53

TDP: 6W

Memory

Type: LPDDR4

Socket: Onboard

Size: 4GB

Graphics

GPU: Mali-T860MP4

Graphic Engine: OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)

Video Decoding Capability: 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders

Display

HDMI: 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)

Network

Controller: 1 x Pef7071 PHY

Interface: 1x RJ45

I/O

USB: 1 x USB3.2 Gen1 (OTG), 3 x USB2.0

Serial Port: 2x RS232

Audio: 1x MIC-IN, 1x AUDIO-OUT

Mini-PCIe: 1x Full-size Mini-PCIe for 3G/4G

SIM: 1x SIM Slot

WiFi on Board: 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)

Storage

eMMC: 32GB

Power

Power Type: DC-IN

Power Adapter: 12V/2A

Environment

Operating Temperature: 0? ~ 40? at 0.7m/s Air Flow

Relative Humidity: 95%@40? (non-condensing)

Supported Operating Systems: Android 7.1

Mounting: Desk/Wall Mounting and VESA

Certification: CE, FCC

Dimensions: 11.66 x 10.74 x 3 cm

What’s in The Box:

Giada DN74 ARM RK3399 Fanless Android Signage Player 32GB x1

AC Power Adapter x1
