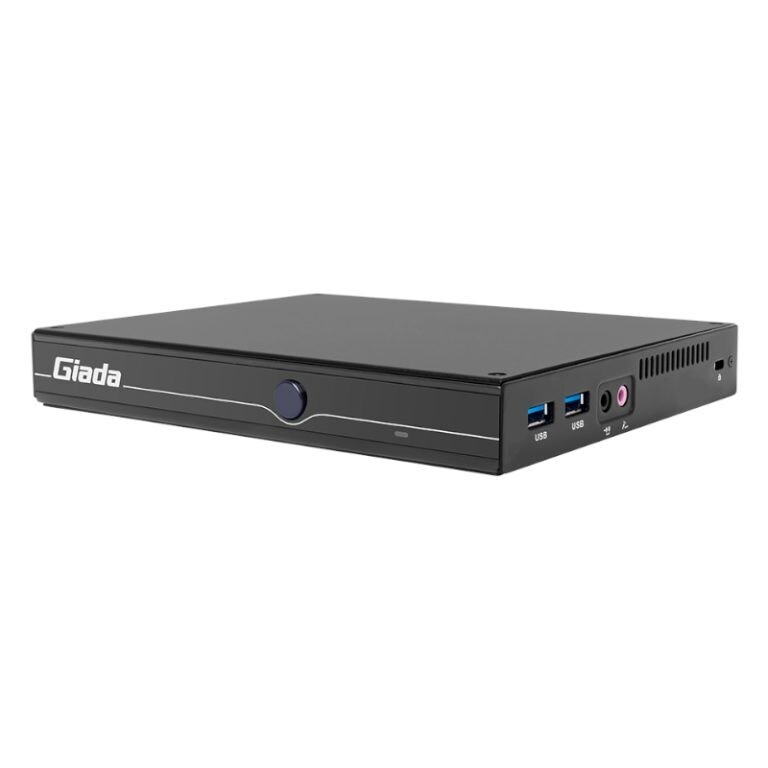

Giada- F106D-FVN510042N0G-GIA- Giada F106D Celeron N5100 4GB eMMC

Giada- F106D-FVN510042N0G-GIA- Giada F106D Celeron N5100 4GB eMMC- The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.

FEATURES:

Intel® Celeron® N5100 Processor

1 x DP, 1 x HDMI, Supporting 4K Display

Onboard LPDDR4 4GB

2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT

Long life cycle

Fanless Design

SPECIFICATIONS:

Processor:

CPU: Intel® Celeron® N5100 processor (Fanless)

Turbo Frequency: 2.80 GHz/2.90 GHz

Chipset: SoC

Processing Units: 4 Cores/4 Cores

Memory:

Type: Onboard LPDDR4-2666 MHz

Size: 4GB

Storage:

Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)

Socket 2: 1 x Full-size Mini-PCIe for MSATA

Onboard: 32GB, Onboard eMMC5.1

Graphics:

GPU: Intel® UHD Graphics

Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2

DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)

HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)

Network:

Controller: Realtek RTL 8111H Gigabit Ethernet

Interface: 2 x RJ45

Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6

Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot

I/O:

USB: 2 x USB3.2 Gen2, 4 x USB2.0

Serial Port: 1 x RS232

Audio: 1 x MIC-IN, 1 x AUDIO-OUT

Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)

Button: 1 x Power on, 1 x CLR-CMOS

System:

TPM: TPM2.0

Watchdog Timer: Yes

Auto Power on: Yes

RTC: Set up independently every day

Remo on: Yes

Fanless: Yes

Operation System:

Windows: Windows 10 (64Bit), Windows 11 (64bit)

Linux: Linux Ubuntu (64bit)

Power:

Power Type: DC-IN

Input Voltage: 19V/2.37A

Environment:

Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

Relative Humidity: 95% @ 45°C (non-condensing)

Certification: CE, FCC Class B

Construction: Metal

Fanless: Yes

Colour: Black

Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB – Black x1

Wi-Fi Antenna x2

AC Power Adapter x1

Power Cable x1
