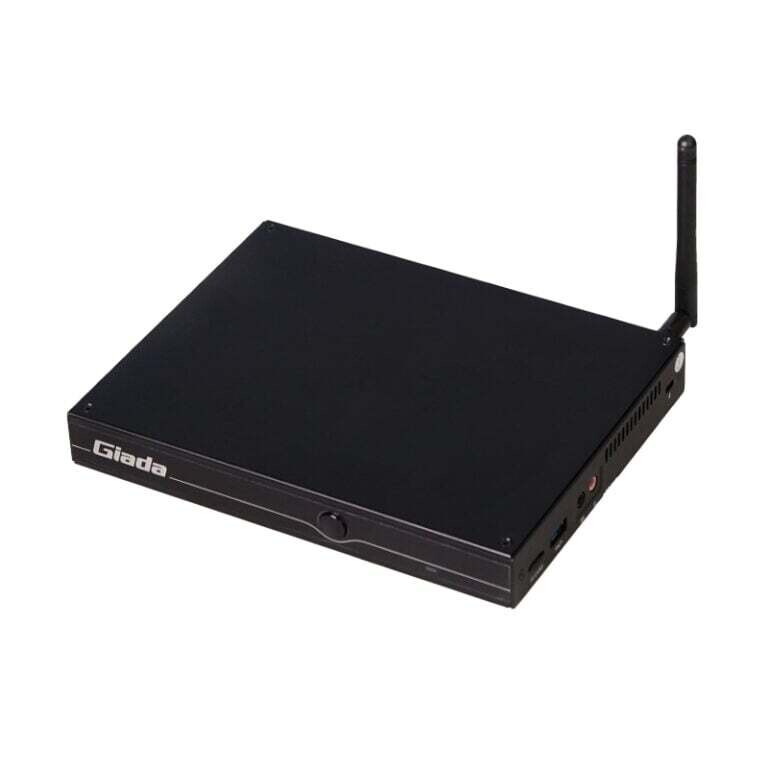

Giada F110D Fanless Celeron J1900 2xRJ45

Giada- F110D-J190030M0G-GIA- Giada F110D Fanless Celeron J1900 2xRJ45- The Giada F110D Fanless Digital Signage Player is an entry-level embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and powerful design brings organizations all the performance and efficiency of the Intel® Celeron® J1900 CPU, plus a VGA and HDMI output with up to 1080p resolution support. Its VGA, HDMI, USB ports, dual gigabit LAN, Windows and Linus OS support, and support for mSATA SSDs and mini-PCIe 4G cards make it very versatile. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.

FEATURES:

Intel® Celeron® J1900 Processor

1 x DP, 1 x HDMI, Supporting 4K Display

1 x SODIMM DDR3L slot (support up to 8GB)

1 x 2.5? SATA, 1 x Full Size mSATA, 1 x TF Card Reader

1 x Half-size Mini-PCIe for WiFi/BT

2 x RJ45

SPECIFICATIONS:

Processor:

CPU: Intel® Celeron® J1900 Processor

Frequency: 2.00GHz (Up to 2.42GHz)

BIOS: AMI Source Code

Chipset: SOC

Memory:

Type: DDR3L-1333MHz

Socket: 1 x SO-DIMM

Max Size: 8GB

Graphics:

GPU: Intel® HD Graphics

Graphic Engine: DirectX 11.1, OpenGL 3.0, OCL 1.1, OpenGL ES 2.0

HDMI: 1 x HDMI (Max.1920×1080@60Hz)

VGA: 1 x VGA (Max. 2048 x 1280@60Hz)

Network:

Controller: 2 x Realtek 8111H Gigabit Ethernet

Interface: 2 x RJ45

I/O:

USB: 1 x USB 3.0, 4 x USB 2.0

Serial Port: 2 x RS232

Audio: 1 x MIC-IN, 1 x AUDIO-OUT & SPDIF

Mini-PCIe1#: 1 x Full-size Mini-PCIe for mSATA/3G/4G

Mini-PCIe2#: 1 x Half-size Mini-PCIe for WiFi/BT

SIM: 1 x SIM Slot

Storage:

SATA: 1 x 2.5? SATA

mSATA: 1 x Full-size mSATA

Card Reader: 1 x TF Card Reader

JAHC Tech:

WatchDog Timer: 0~255 Second Time Out Support

Auto Power On: Power Activated Automatically Start

RTC: Set Up Independently Every day, A Week as a Cycle

Remote Control: By IR Controller for Power On

Wake On Lan: Yes

Operation System:

Windows: Windows 7/8.1/10(64-bit)

Linux: Support

Power:

Power Type: DC-IN

Input Voltage: 19V/2.1A

Environment:

Operating Temperature: 0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow

Relative Humidity: 95%@40? (non-condensing)

Certification: CE, FCC Class B, CCC

Fanless: Yes

Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)

Construction: Metal

Colour: Black

Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

Giada F110D Intel Celeron Fanless Digital Signage Player – Black x1

Power Cable x1
