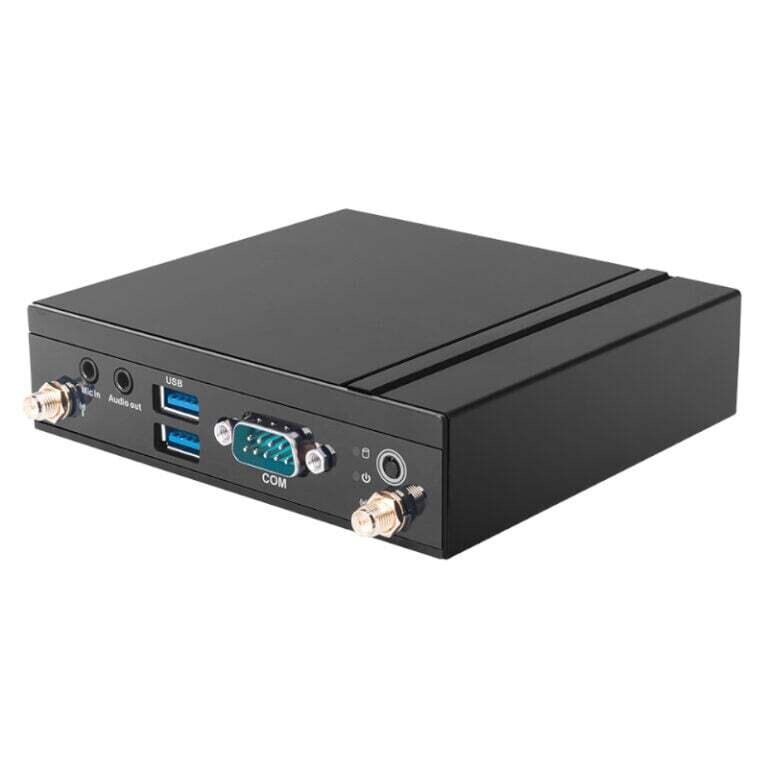

Giada VM23 Fanless N3350 2GB 32GB SSD 1xDP 1xHDMI

Giada- VM23-F4-N335031E5G-GIA- Giada VM23 Fanless N3350 2GB 32GB SSD 1xDP 1xHDMI - The Apollo Lake Celeron® processors N3350/N3450 (TDP 6W) power the Giada VM23 Fanless ultra-compact player. It is Giada’s most popular model, having the best price-performance ratio. It has internal LPDDR4 memory as well as eMMC5.1 storage. Intel® HD Graphics 500 is used in the player. It has dual 1080p video decoding support. HDMI 1.4a supports resolutions of up to 4096 x 2160@24Hz, whereas DisplayPort 1.2 allows resolutions of up to 4096 x 2160@60Hz. The fanless design, along with a passive thermal cooling system, minimises failure rates while keeping the device noise-free and dustproof. It makes this Giada® device suitable for use in mission-critical applications.

FEATURES:

Intel® Celeron® N3350 processor

1 x HDMI, Supporting 4K Display

Onboard LPDDR4 2GB

Realtek RTL 8111H Gigabit Ethernet

1 x E-Key M.2 (2230) for WiFi/BT

Long life cycle

SPECIFICATIONS:

Processor:

CPU: Intel® Celeron® N3350 processor

Frequency: 2.40 GHz

Chipset: SoC

Processing Units: 2 Cores

Memory:

Type: Onboard LPDDR4-2133 MHz

Size: 2GB

Storage:

Socket: 1 x Full-size Mini-PCIe for MSATA

Onboard: 32 GB/64 GB, Onboard eMMC

Graphics:

GPU: Intel® HD Graphics 500

Graphic Engine: DirectX 12, OpenGL 4.3, OpenCL 2.0

DisplayPort: 1 x DP (Max.4096 x 2304 @60 Hz)

HDMI: 1 x HDMI (Max.3840 x 2160 @30 Hz)

Network:

Controller: Realtek RTL 8111H Gigabit Ethernet

Interface: 1 x RJ45

Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT

I/O:

USB: 2 x USB3.2 Gen2, 4 x USB2.0

Serial Port: 1 x RS232

Audio: 1 x MIC-IN, 1 x AUDIO-OUT

Antenna: 1 x Connector for Wi-Fi/BT

Button: 1 x Power on, 1 x CLR-CMOS

System:

TPM: NA

Watchdog Timer: Yes

Auto Power on: Yes

RTC: Set up independently every day

Remo on: Yes

Fanless: Yes

Operation System:

Windows: Windows 10 (64Bit), Windows 11 (64bit)

Linux: Linux Ubuntu (64bit)

Power:

Power Type: DC-IN

Input Voltage: 12 V/2 A

Environment:

Operating Temperature: 0°C ~45°C (32°F~104°F) @0.7m/s Air Flow

Relative Humidity: 95% @ 40°C (non-condensing)

Certification: CE, FCC Class B

Construction: Metal

Colour: Black

Dimensions: 11.6 x 10.7 x 3 cm

WHAT’S IN THE BOX:

Giada VM23 Intel Celeron Fanless Player – Black x1

WiFi Antenna x1

AC Power Adapter x1

Power Cable x1
