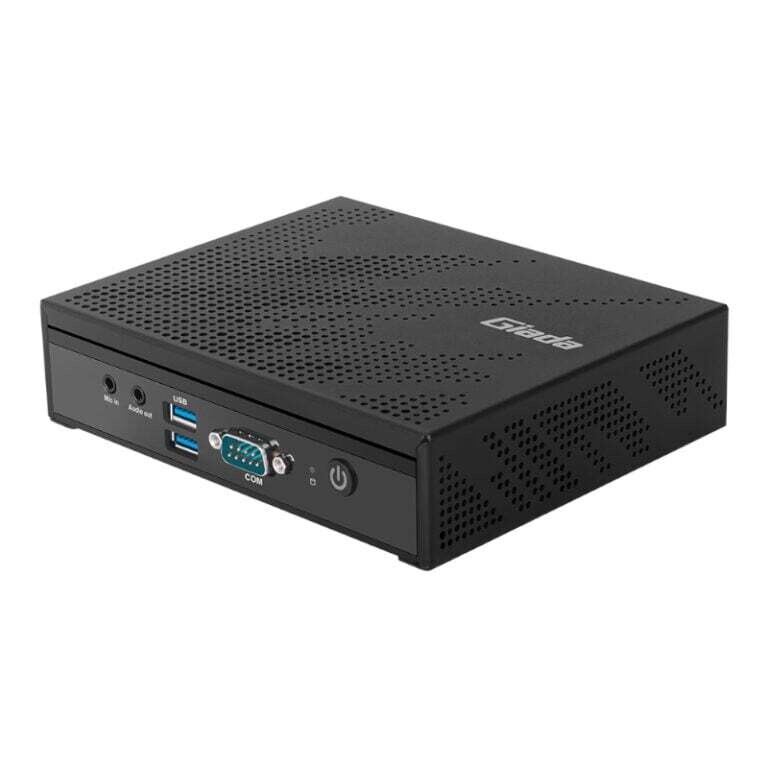

Giada VM27 with N6210 4G DDR4 on board, 64G EMMC on board

Giada- VM27-N621042E6G-GIA- Giada VM27 with N6210 4G DDR4 on board, 64G EMMC on board- The Giada VM27 is based on Intel® IOTG roadmap with 7+ years lifespan. It supports Pentium® quad-core N6415 and Celeron® dual-core N6210 processors. The onboard dual-channel LPDDR4 and eMMC5.1 storage ensure its stable operating in harsh environments. The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors and it has up to 2x performance improvement in graphics over previous generation. It supports vivid dual 1080p video or one 4K video decoding. Its HDMI 2.0a and DisplayPort 1.2 ports can also support resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

FEATURES:

Intel® Celeron® N6210 Processor

1 x DP, 1 x HDMI, Supporting 4K Display

Onboard DDR4 4GB

1 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT

Long life cycle

Fanless Design

SPECIFICATIONS:

Processor:

CPU: Intel® Celeron N6210

Frequency: 2.60 GHz

Cores: 2

Chipset: SoC

Memory:

Type: DDR4-2666 MHz

Socket: Onboard

Size: 4GB

Storage:

Socket: 1 x Full-size Mini-PCIe for MSATA

Onboard: 64GB, Onboard eMMC5.1

Graphics:

GPU: Intel® UHD Graphics

Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, Intel® Quick Sync Video

DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)

HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)

Network:

Controller: Realtek RTL 8111H Gigabit Ethernet

Interface: 1 x RJ45

Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6

Mobile Network: NA

I/O:

USB: 4x USB 3.2 (10Gbps)

Serial Port: 1 x RS232

Audio: 1 x MIC-IN, 1 x AUDIO-OUT

Antenna: 2 x Connector for Wi-Fi/BT

Button: 1 x Power on, 1 x CLR-CMOS

System:

TPM: FTPM

Watchdog Timer: Yes

Auto Power on: Yes

RTC: Set up independently every day

Remo on: Yes

Fanless: Yes

Operation System:

Windows: Windows 10 (64Bit), Windows 11 (64bit)

Linux: Linux Ubuntu (64bit)

Power:

Power Type: DC-IN

Input Voltage: 19V/2.37A

Environment:

Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

Relative Humidity: 95% @ 45°C (non-condensing)

Certification: CE, FCC Class B

Construction: Metal

Fanless: Yes

Colour: Black

Dimensions: 15.4 x 12.5 x 4 cm

WHAT’S IN THE BOX:

Giada VM27 Intel Celeron Ultra-compact Fanless Signage Player – Black x1

WiFi Antenna x2

AC Power Adapter x1

Power Cable x1

User Manual x1- Elevate Your Business Potential: Unleash Efficiency and Reliability with Our Commercial PC Systems – Tailored Solutions for Seamless Productivity, Redefining the Landscape of Corporate Computing.
