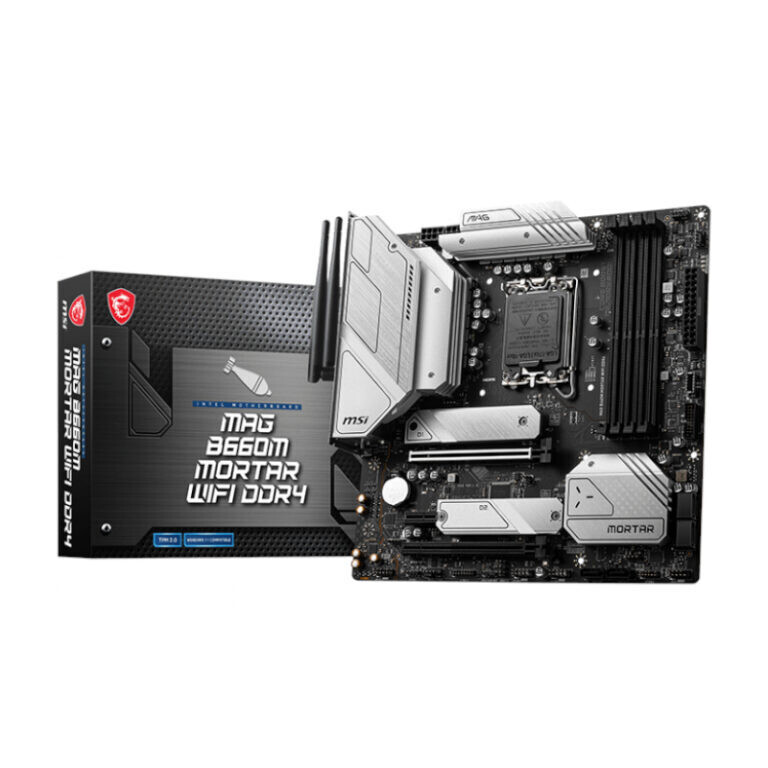

MSI- MAGB660MMORTARWIFIDDR4 - MSI MAG B660M Mortar WIFI DDR4 Intel LGA1700 mATX Gaming Motherboard

MSI- MAGB660MMORTARWIFIDDR4 - MSI MAG B660M Mortar WIFI DDR4 Intel LGA1700 mATX Gaming Motherboard - Utilizing 12th Gen Intel processors, MSI B660 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions.

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

FEATURES:

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 4800+(OC) MHz

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works

2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

AUDIO BOOST: Reward your ears with studio grade sound quality

Multi-GPU: With Steel Armor PCIe slots. Supports AMD Crossfire™

SPECIFICATIONS:

Socket: 1700

CPU (Max Support): i9

Chipset: Intel® B660 Chipset

DDR4 Memory: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

Memory Channel: Dual

DIMM Slots: 4

Max Memory (GB): 128

PCI-E x16: 2

PCI-E x1: 1

SATAIII: 6

M.2 Slot: 2

RAID: 0/1/5/10

LAN: 1x Realtek® 8125BG 2.5G LAN

Wireless and Bluetooth: Intel® Wi-Fi 6 module

USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)

USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 3(Gen 2, Type A)

USB 2.0 ports (Front): 4

USB 2.0 ports (Rear): 4

Audio ports (Rear): Realtek® ALC1200 Codec

DisplayPort: 1

HDMI: 1

DirectX: 12

Form Factor: mATX

CrossFire: Yes

Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

WHAT’S IN THE BOX:

MSI MAG B660M Mortar WiFi Intel 1700 M-ATX Motherboard – Black x1

SATA cables x2

WiFi Antenna x2

Driver DVD x1

EZ M.2 Clips x2

Screwdrivers x2

Quick Install Guide x1 - Seamless Harmony, Unmatched Performance: Elevate Your System with Intel Motherboards – Where Power Meets Precision for a Computing Experience Beyond Limits.
