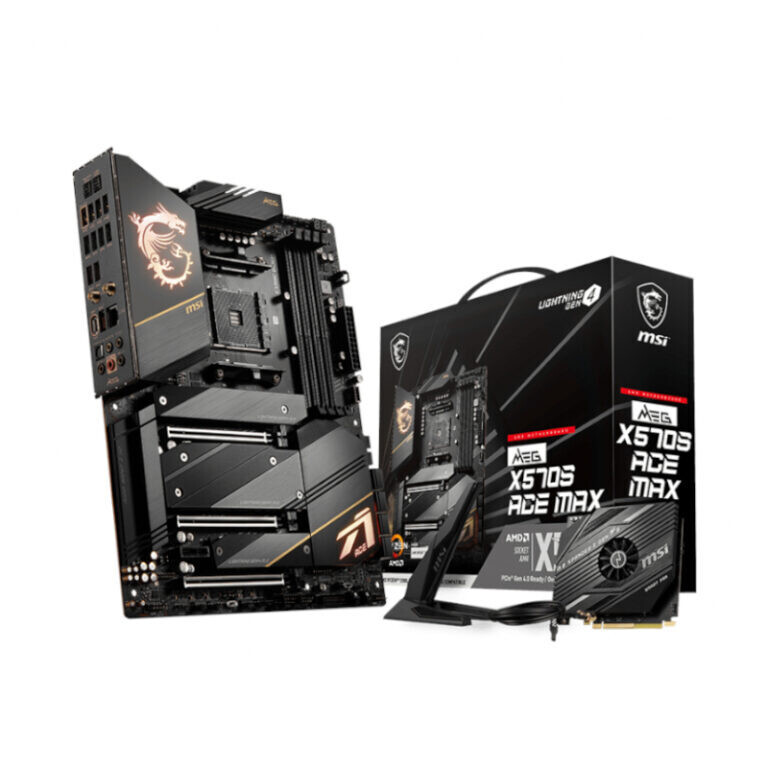

MSI- MEGX570SACEMAX - MSI MEG X570S ACE MAX AMD AM4 ATX Gaming Motherboard

MSI- MEGX570SACEMAX - MSI MEG X570S ACE MAX AMD AM4 ATX Gaming Motherboard - With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards.

High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64Gb/s transfer speed.

FEATURES:

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

Supports DDR4 Memory, Dual Channel 5300(OC) MHz+

Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.

Quadruple M.2 Connectors: Onboard 4x M.2 connectors for maximum storage performance with Lightning Gen 4 solution.

Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.

Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate.

2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz.

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.

Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.

Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier delivers the breathtaking experience.

SPECIFICATIONS:

Socket: AMD Socket AM4

CPU (Max Support): RYZEN 9

Chipset: AMD® X570 Chipset

DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100/ 5200/ 5300+Mhz by JEDEC and A-XMP OC MODE

Memory Channel: Dual

DIMM Slots: 4

Max Memory (GB): 128

PCI-E x16: 3

PCI-E x1: 1

SATAIII: 8

M.2 Slot: 4

RAID: 0/1/10

LAN: 1 x Realtek® 8125B 2.5G LAN

Wi-Fi and Bluetooth: Intel® Wi-Fi 6E AX210

USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)

USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)

USB 2.0 ports (Front): 4

USB 2.0 ports (Rear): 4

Audio ports (Rear): + Optical S/PDIF (Realtek® ALC4082 Codec + ESS SABRE9018Q2C combo DAC)

DirectX: 12

Form Factor: ATX

Crossfire: Yes

SLI: Yes

Operating System: Support for Windows® 10 64-bit

WHAT’S IN THE BOX:

MSI MEG X570S ACE MAX AM4 ATX Motherboard – Black x1

Wi-Fi Antenna x1

SATA cables x4

M.2 XPANDER-Z GEN4 S x1

M.2 Standoff Screws/Sets x4

USB Drive x1

Cleaning Brush x1

Screwdrivers x2

Thermistor Cable x2

1 to 2 RGB LED Extension Y Cable x1

CORSAIR RGB LED Extension Cable x1

Rainbow RGB LED Extension Cable x1

MAG Stickers Pack x1

Quick Install Guide x1

User Manual x1 - Unleash the Power of Innovation: Elevate Your System with AMD Motherboards – Where Cutting-Edge Technology Meets Reliability, Redefining the Essence of High-Performance Computing.
