MSI- MPGX570SEDGEMAXWIFI - MSI MPG X570S EDGE MAX Wi-Fi AMD AM4 ATX Gaming Motherboard

MSI- MPGX570SEDGEMAXWIFI - MSI MPG X570S EDGE MAX Wi-Fi AMD AM4 ATX Gaming Motherboard - With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards.

High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

FEATURES:

Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors

Supports DDR4 Memory, up to 5300+(OC) MHz

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2

Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost

Premium Thermal Solution: Aluminum cover, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance

Mystic Light: 16.8 million colours / 29 effects controlled in one click.

2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution

Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade-level material

Pre-installed I/O Shield: Better EMI protection and more convenience for installation

SPECIFICATIONS:

Socket: AMD Socket AM4

CPU (Max Support): Ryzen 9

Chipset: AMD® X570 Chipset

DDR4 Memory: 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz

Memory Channel: Dual

DIMM Slots: 4

Max Memory (GB): 128

PCI-E x16: 3

PCI-E x1: 1

SATAIII: 6

M.2 Slot: 3

RAID: 0/1/10

LAN: 1x Realtek® 8125B 2.5G LAN

Wi-Fi and Bluetooth: Intel® Wi-Fi 6E AX210

USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)

USB 3.2 ports (Rear): 1(Gen 2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)

USB 2.0 ports (Front): 4

USB 2.0 ports (Rear): 2 (Type-A)

Audio ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)

HDMI: 1

DirectX: 12

Form Factor: ATX

Crossfire: Yes

Operating System: Support for Windows® 10 64-bit

WHAT’S IN THE BOX:

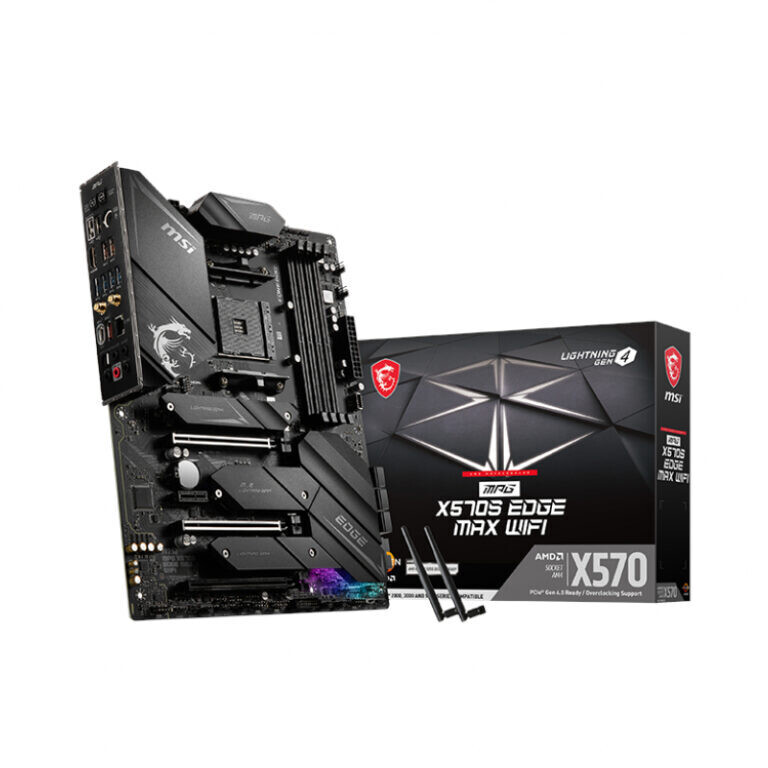

MSI MPG X570S EDGE MAX WIFI AM4 ATX Motherboard – Black x1

Wi-Fi Antenna x2

SATA cables x2

Standoff Screws/Sets x3

USB Drive x1

Cleaning Brush x1

Thermistor Cable x1

Rainbow RGB LED Extension Cable x1

MPG Stickers Pack x1

Quick Install Guide x1

User Manual x1 - Unleash the Power of Innovation: Elevate Your System with AMD Motherboards – Where Cutting-Edge Technology Meets Reliability, Redefining the Essence of High-Performance Computing.
