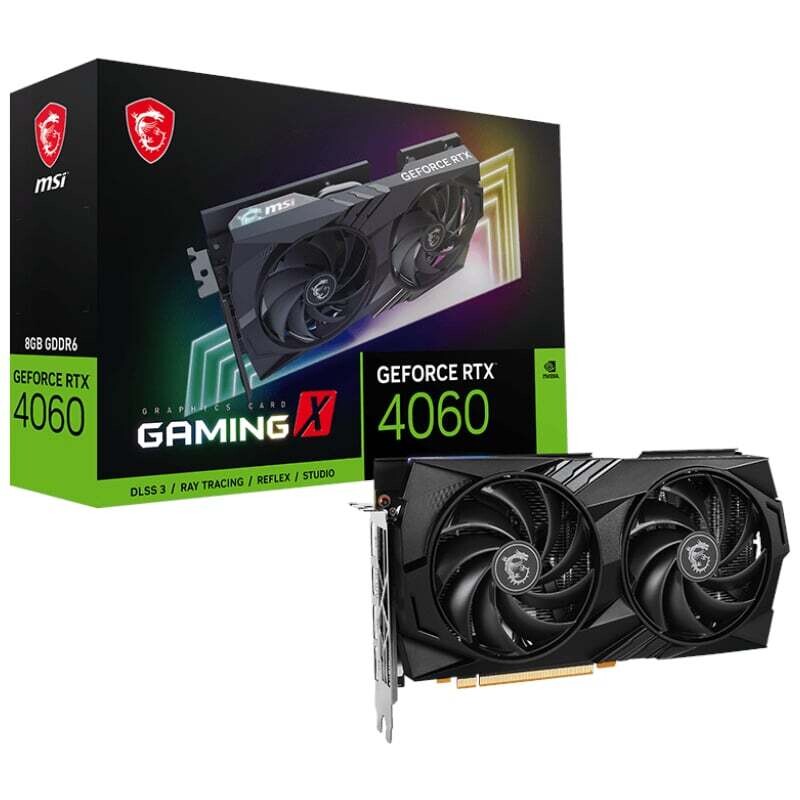

MSI Nvidia GeForce RTX 4060 Gaming X 8G GDDR6X 128-BIT Graphics Card

MSI- RTX4060GAMINGX8G- MSI Nvidia GeForce RTX 4060 Gaming X 8G GDDR6X 128-BIT Graphics Card- The NVIDIA GeForce RTX™ 4060 is the perfect choice for gaming, streaming, and creating. Packed with the ultra-efficient NVIDIA Ada Lovelace architecture, it offers gamers immersive AI-accelerated gaming with ray tracing and DLSS 3 as well as boosted creative productivity with NVIDIA Studio. With the RTX 4060, you can tackle the latest and greatest games and applications with ease.

TORX FAN 5.0 is a revolutionary fan design that maximizes air pressure and flow. Its ring arc-linked fan blades are tilted 22 degrees, delivering a higher airflow of 23% compared to an axial fan. The fan cowl extends beyond the enclosure to lengthen the airflow pathway, allowing airflow to stabilize for a smoother, quieter performance. Bulging notches below the cowl further improve airflow stability and reduce sound. TORX FAN 5.0 is an outstanding fan design that offers superior performance.

This GPU heatsink is designed to quickly and efficiently transfer heat from the GPU and memory modules. A solid nickel-plated copper baseplate captures the heat before it is spread to precision-crafted core pipes and rapidly moved away from the source. These pipes maximize the available space and fully contact the GPU baseplate for optimal heat transfer. With this design, efficient heat transfer is achieved, allowing you to face the heat head-on.

MSI has used its Wave Curved 2.0 technology and updated deflectors for improved airflow dynamics, bringing a new level of balance between efficient cooling and reduced acoustics. The custom PCB features additional fuses, protecting against electrical damage, and the clay-based thermal pads provide enhanced heat dissipation. MSI Center software enables users to monitor, tweak and optimize their MSI products in real-time, providing the utmost control.

FEATURES:

Boost Clock / 2595 MHz

Memory Speed / 17 Gbps

8GB GDDR6

DisplayPort x 3 / HDMI x 1

Double Fan Thermal Design

TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.

Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

Core Pipe: Precision-machined heat pipes ensure max contact with the GPU and spread heat along the full length of the heatsink.

Twin Frozr 9: MSI’s TWIN FROZR 9 thermal design enhances heat dissipation all around the graphics card.

SPECIFICATIONS:

Graphics Processing Unit: NVIDIA® GeForce RTX™ 4060

Interface: PCI Express® Gen 4 x 8

Core Clocks: Extreme Performance: 2610 MHz (MSI Center), Boost: 2595 MHz (Gaming and Silent Mode)

CUDA® Cores: 3072 Units

Memory Speed: 17 Gbps

Memory: 8GB GDDR6

Memory Bus: 128-bit

Output: DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)

HDCP Support: Yes

Power Consumption: 115 W

Power Connections: 8-pin x1

Recommended PSU: 550 W

DirectX Version Support: 12 Ultimate

OpenGL Version Support: 4.6

Maximum Displays: 4

G-Sync® Technology: Yes

Digital Maximum Resolution: 7680 x 4320

Product Dimensions: 24.7 x 13.0 x 4.1 cm

Product Weight: 587g

WHAT’S IN THE BOX:

MSI GeForce RTX™ 4060 GAMING X 8G Graphics Card x1- Unleash Boundless Graphics: Elevate Your Visual Experience with NVIDIA Graphics Cards – Where Innovation Meets Immersion, Redefining Gaming and Creativity at the Speed of Imagination
