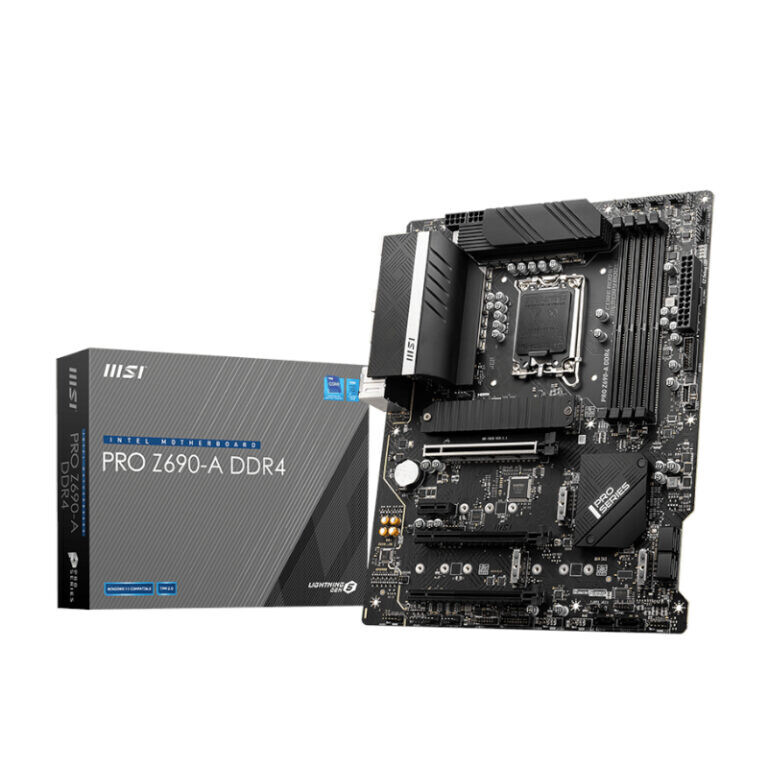

MSI- PROZ690-ADDR4 - MSI PRO Z690-A-DDR4 LGA1700 ATX Gaming Motherboard

MSI- PROZ690-ADDR4 - MSI PRO Z690-A-DDR4 LGA1700 ATX Gaming Motherboard - MSI PRO Series motherboards help users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

MSI motherboards feature tons of convenient and smart designs for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. This makes it so easy to install your own motherboard without any issue.

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors run in full speed with MSI motherboards.

The most important thing about DIY is expandability. MSI PRO Series motherboards feature plenty of possibilities for prosumers’ needs. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy the extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

FEATURES:

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 5200+(OC) MHz

Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2

Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high-performance system and non-stop works

2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and the fastest USB speeds

Audio Boost: Reward your ears with studio grade sound quality

High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade-level material

Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™

SPECIFICATIONS:

Socket: 1700

CPU (Max Support): i9

Chipset: Intel® Z690 Chipset

DDR4 Memory: 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

Memory Channel: Dual

DIMM Slots: 4

Max Memory (GB): 128

PCI-E x16: 3

PCI-E X1: 1

SATAIII: 6

M.2 Slot: 4

RAID: 0/1/5/10

TPM Header: 1

LAN: 1x Intel® I225-V 2.5Gbps LAN

USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)

USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)

USB 2.0 ports (Front): 4

USB 2.0 ports (Rear): 4

Audio ports (Rear): Realtek® ALC897 Codec

DisplayPort: 1

HDMI: 1

DirectX: 12

Form Factor: ATX

Crossfire: Yes

Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

WHAT’S IN THE BOX:

MSI PRO Z690-A DDR4 Intel ATX Motherboard – Black x1

SATA cables x2

M.2 Clips x2

M.2 Screw/Standoff Set x1

I/O Shield x1

Driver DVD x1

Quick Install Guide x1

User Manual x1 - Seamless Harmony, Unmatched Performance: Elevate Your System with Intel Motherboards – Where Power Meets Precision for a Computing Experience Beyond Limits.
