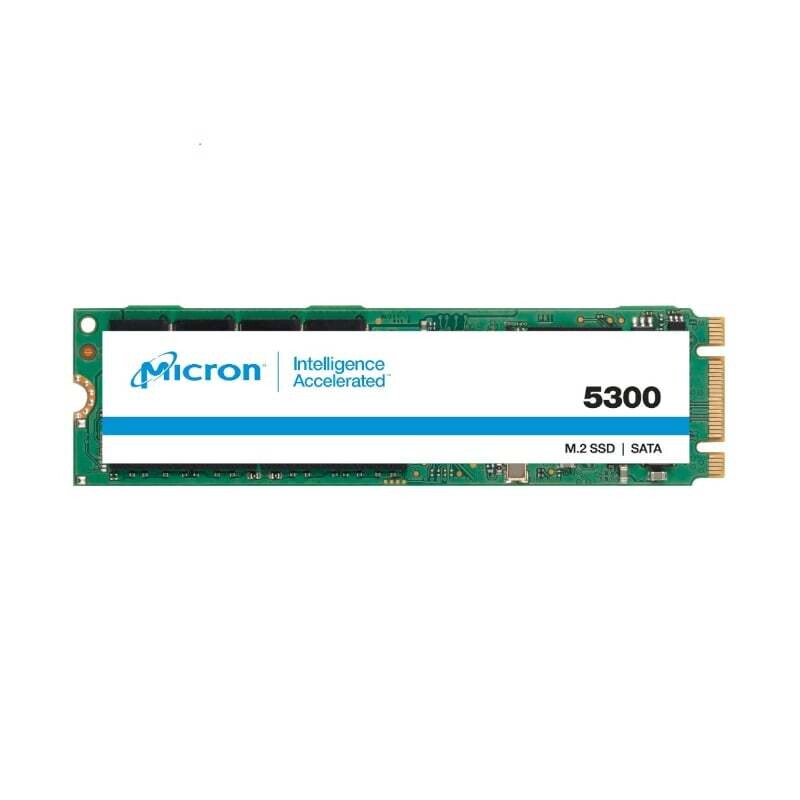

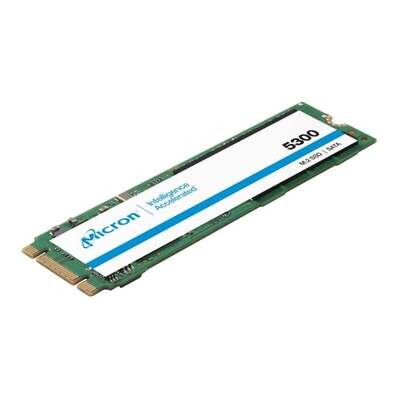

Micron 5300 PRO 240GB M.2 NVMe SSD

Micron - MTFDDAV240TDS-1AW15ABYYR- Micron 5300 PRO 240GB M.2 NVMe SSD- Built with Micron’s innovative 96-layer 3D TLC NAND, the Micron 5300 combines the latest in NAND technology and a proven architecture to provide performance upgrades now and a path forward for moving to an all-flash future. The Micron 5300 offers high capacity, added security, and enhanced endurance to enable strong performance.

Moving to all-flash storage often involves choosing SATA, and your workloads deserve innovation. The Micron® 5300 series of SATA solid-state drives (SSDs) brings you the latest 3D NAND technology with everything you expect from Micron’s SATA portfolio, which is the broadest in the industry. As the first cost-effective, 96-layer TLC NAND flash drive for SATA, the Micron 5300 rewards modernization efforts with high performance, consistency, and reliability on a proven architecture. The Micron 5300 SSD has a mean time to failure (MTTF) of 3 million device hours — 50% more than the norm.

Refresh your data centre and gain performance upgrades. Modernize your racks, stacks, and server arrays by updating your data centre with the performance, consistency, and expanded data security of the Micron 5300 SSD. Its data centre-class SATA storage delivers robust, consistent performance at 6 Gb/s for your data centre and cloud, along with sequential read speeds of 540 MB/s.

The Micron 5300 series of SATA SSDs includes Micron’s solid, secure firmware features — secure digital signatures and boot-time attestation — plus AES 256-bit hardware encryption that follows the TCG Security Subsystem Class (SSC) Enterprise specification for storage devices for servers, data centres, and data centre applications. The 5300 SSDs operate with the drive’s onboard encryption engine, so encryption doesn’t cause a degradation in performance.

FEATURES:

240GB Capacity

M.2 (22×80 mm) Form Factor

Enterprise-class SATA storage

96-layer 3D TLC NAND

Read Speeds up to 540MB/s

Marvell® Dean controller with Micron® custom firmware

SPECIFICATIONS:

Capacity: 240Gb

Form Factor: M.2: 22x80mm

Memory Type: Micron 96-layer 3D TLC NAND

Controller: Marvell® Dean controller with Micron® custom firmware

Interface: SATA 6Gbps (SATA III)

MTTF: 3 million hours

Sequential Read (MB/s): 540

Sequential Write (MB/s): 310

Rand. Read (K IOPS): 67

Rand. Write (K IOPS): 40

Endurance (TBW): 1.5

Advanced Features:

Flex Capacity

AES 256–bit encryption

TCG Enterprise configurable

TCG Opal

Power loss protection for data-at-rest and in–flight

Data centre-class data path protection for the user and metadata

Secure firmware

Adaptive thermal monitoring

Easy to install (hot-pluggable)

Storage Executive SSD management tool

RAIN

Product Dimensions: 8 x 2.2 x 0.4 cm

Weight: 10g

WHAT’S IN THE BOX:

Micron 5300 PRO 240GB M.2 2280 SATA TCG Opal 2.0 SSD x1- Engineered for Enterprise Excellence: Empower Your Business with Unrivaled Speed, Reliability, and Endurance – Our Enterprise Solid State Drives Redefine Data Storage, Elevating Your Infrastructure to New Heights of Performance and Efficiency.
