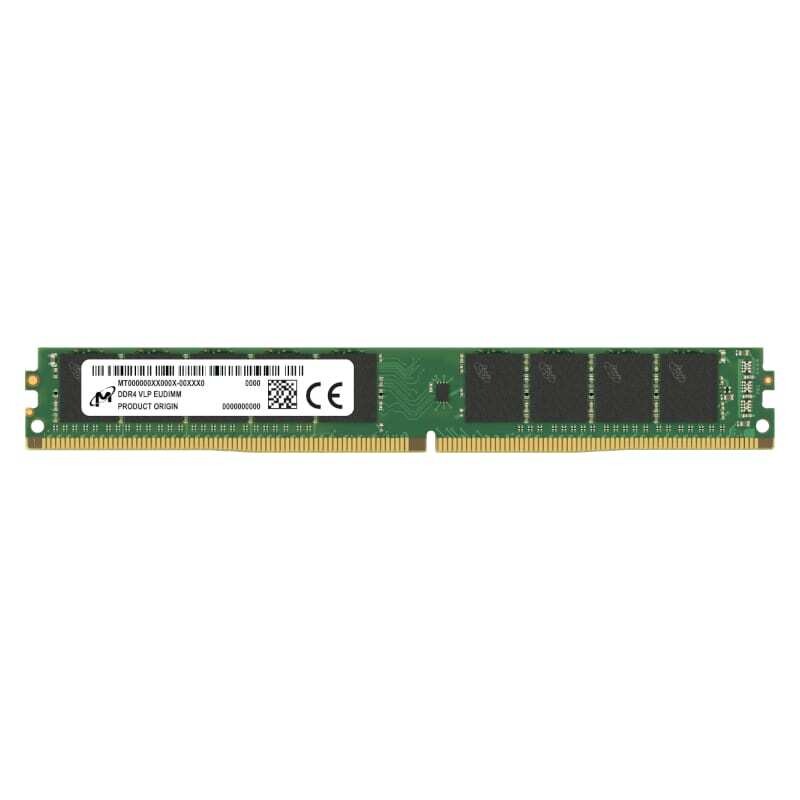

Micron- MTA18ADF2G72AZ-3G2E1R - Micron MTA18ADF2G72AZ-3G2E1R 16GB 3200MHz DDR4 ECC VLP UDIMM Memory

Micron- MTA18ADF2G72AZ-3G2E1R - Micron MTA18ADF2G72AZ-3G2E1R 16GB 3200MHz DDR4 ECC VLP UDIMM Memory - Upgrade your server with the Micron MTA18ADF2G72AZ-3G2E1 16GB DDR4 3200MHz VLP ECC UnNeck Scarfered Dimm. Micron builds all modules from start to finish – designing, manufacturing and testing all the DRAM themselves before assembling the modules and testing again. This module offers high data rates of 3200 MT/s and a 16GB VLP ECC unNeck Scarfered capacity.

FEATURES:

288-pin, very low profile unNeck Scarfered dual in-line memory module (VLP UDIMM)

Fast data transfer rates: PCB4-3200, PC4-2666, or PC4-2400

16GB (2 Gig x 72)

VDD = 1.20V (NOM)

VPP = 2.5V (NOM)

VDDSPD = 2.5V (NOM)

Supports ECC error detection and correction

Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

Low-power auto self-refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Dual-rank

On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM

4 internal device bank groups with 4 banks per group produce 16 device banks

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Gold edge contacts

Halogen-free

Fly-by topology

Terminated control, command, and address bus

SPECIFICATIONS:

Manufacturer Part #: MTA18ADF2G72AZ-3G2E1

Memory Type: DDR4 SDRAM

Comp. Config: 1Gb x 8

Data Rate: 3200 MT/s

Density: 16GB

Width: x72

Pins: 288 Pin

Bus Type: PCB4-3200, PC4-2666, or PC4-2400

Error Correction: VLP ECC UnNeck Scarfered

Rank: Dual-Rank

Voltage: VDD = 1.20V (NOM)

What’s In The Box:

Micron MTA18ADF2G72AZ-3G2E1 16GB DDR4 3200MHz VLP ECC UnNeck Scarfered Dimm x1 - Elevate Your Server Performance to New Heights with Our Cutting-Edge Memory Solutions – Unleashing Unrivaled Speed, Reliability, and Efficiency for Seamless Business Operations.
