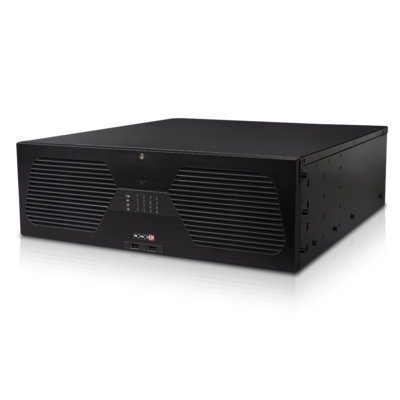

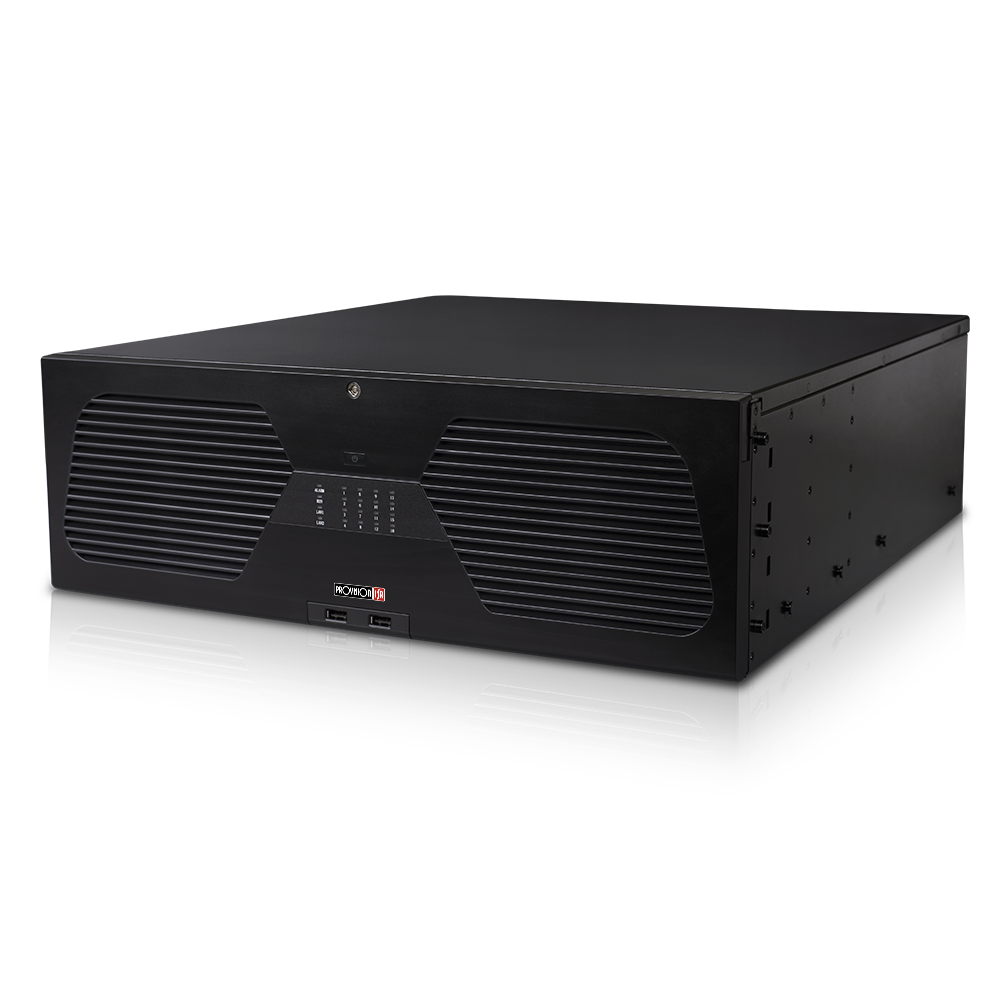

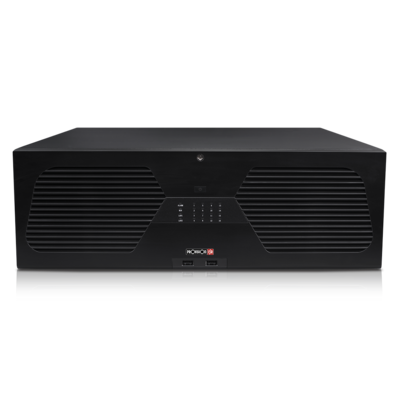

Provision ISR _NVR8-128RT(3U) - 128CH 8MP NVR - 128CH 8MP Real-time NVR,Output: HDMI- 2K/4K &VGA, Audio In/Out, Alarm In/Out, 3 U Case, 16 SATA (8TB), 3200/3840 FPS H.265, 384MB In, 384MB Out

NVR8-128RT(3U) - 128CH 8MP NVR - 128CH 8MP Real-time NVR,Output: HDMI- 2K/4K &VGA, Audio In/Out, Alarm In/Out, 3 U Case, 16 SATA (8TB), 3200/3840 FPS H.265, 384MB In, 384MB Out- NVR8-128RT(3U) 128CH 8MP NVR

Input: 128 Channel (Via Network) • Output: HDMI(4K) x 2 dual display mode• 3U Case, 16 HDD - Hot Swap • RAID Support • Audio In/Out • Alarm In/Out • 2 x 1000Mbps Network. NVR8-128RT(3U)

Video:

Input: 2 x RJ-45 Network (1000Mbps) Support

Output: HDMI x 2 + VGA, Dual display mode

HDMI1:4K, 1920x1080 (1080P), 1280x1024

HDMI2 / VGA:1920x1080 (1080P), 1280x1024

Bandwidth:

Incoming: 384Mbps

Outgoing: 384Mbps

Decoding Support:

H.265, H.264

Recording:

Resolution: 8MP & lower

Real-Time 128CH 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1

FPS: 3200(PAL) / 3840 (NTSC)

Playback:

16 Channels Simultaneously (locally), 9Channels (Remotlly).

Audio: Two way audio

Input: 1 Channel + Depends on Camera inputs

Output: 1 Channel on device (RCA)

Alarm:

Input: 8 Physical Alarm channels + IP Camera inputs

Output: 4 Physical Alarm channels + IP Camera outputs only

Storage:

16 x SATA Hot swap (Up to 8TB Each)

USB Port: total 3

1 x USB3.0, 2 x USB2.0

E-Sata x 1

RAID 0/1/5/6/10 Support with Hot Swap.

Network: 2 x RJ-45

2 x 1000Mbps-
