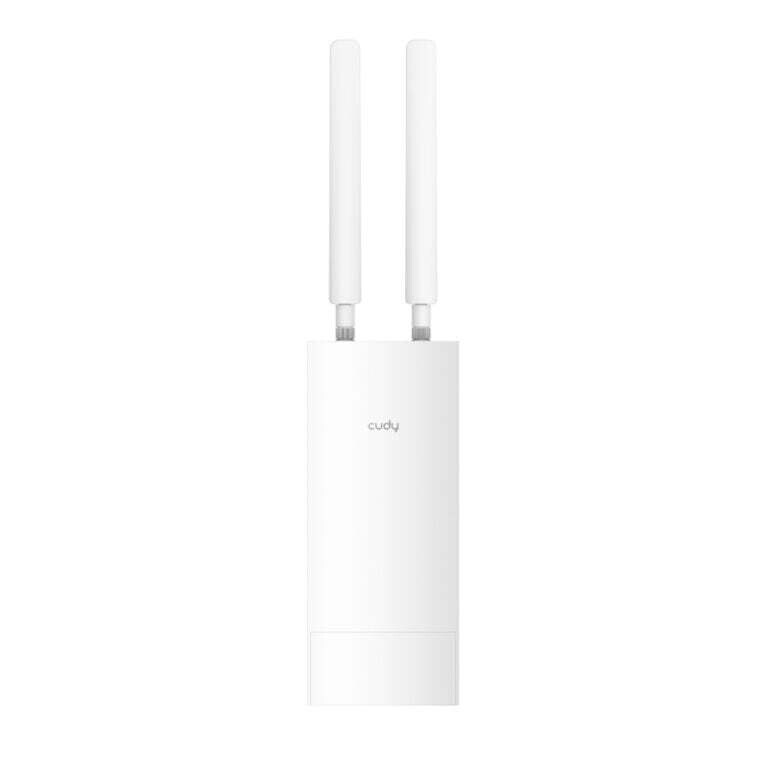

Quectel - EC25- Quectel EC25 4G/LTE Mini PCIe module - The LT500 Outdoor is the perfect solution for turning 4G into speedy Wi-Fi, allowing users to enjoy the convenience of Cat. 4 access anywhere. With maximum download speeds of 150Mbps and upload speeds of 50Mbps, this router provides a fast 4G connection to over 30 devices simultaneously with minimal latency. MU-MIMO and dual-band features further enhance the performance of the AC1200 Wi-Fi, ensuring users have a reliable connection with satisfactory speed and coverage.

This Cudy 4G Outdoor Router is designed to provide strong Wi-Fi coverage support by using Beamforming technology and two built-in antennas. Tests have shown that this product is capable of delivering reliable performance in four different scenarios. The router is further expandable in order to create a Mesh network and extend the Wi-Fi coverage into larger areas. This makes it an ideal product for anyone who needs to cover large distances with top-notch performance.

This Adapter simplifies the process of installing Wi-Fi anywhere. It comes with an adapter that allows you to plug an Ethernet cable into it and extend your network reach up to 100 m without needing an extra cable. You can also connect an AP to the adapter to equip your space with a better Wi-Fi signal, though an AP must be purchased separately. Additionally, the default 4G antennas are as sensitive as a standard phone’s antennas. But if needed, they can be replaced with customized ones via the SMA connectors.

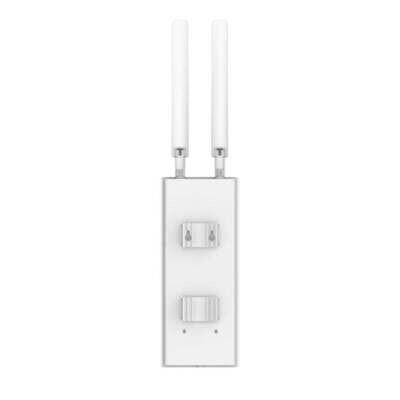

This kit has everything you need to complete a successful installation, including hardware for both wall mounting and pole mounting. With its durable and strong construction, this kit is designed to help you mount your item securely and safely in a variety of locations. It’s an easy and efficient way to get the job done quickly without compromising on quality.

FEATURES:

LTE FDD/TDD Cat 4

AC1200 Wi-Fi

1×10/100Mbps WAN/LAN

Nano SIM Slot

24V Passive PoE

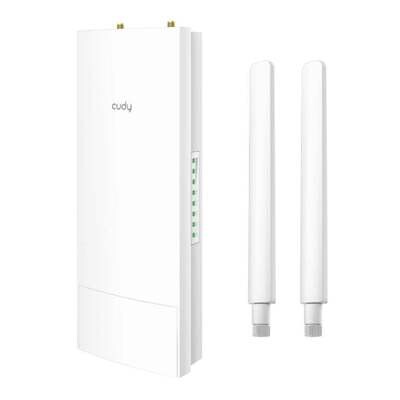

2x Internal Wi-Fi Antennas + 2 x Detachable 4G Antennas

VPN & DDNS

IP65 Water-Proof

SPECIFICATIONS:

Model LT500-Outdoor

LTE Module Model EU Version: EC200A, LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LTE-TDD: B38/B40/B41, WCDMA: B1/B5/B8, GSM/EDGE: B3/B8

LTE Module Model US Version: EC25-AFXD, LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71, WCDMA: B2/B4/B5

Flash: 128 Mbit (16 MB) SPI Flash

DDR: 1 Gbit (128 MB) DDR

Interface: 1× 10/100 Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-), 1× Reset Button, 1× Nano SIM Slot

LED: System/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength

Antenna: 2× Internal Wi-Fi Antennas, 2× External Detachable 4G Antennas

Wireless Standards: IEEE 802.11 ac/a/n/b/g

Frequency: 2.4GHz, 5GHz

Signal Rate: 867 Mbps (5 GHz), 300 Mbps (2.4 GHz), Compatible with 802.11ac/a/b/g/n Wi-Fi standards

Transmit Power CE: <20dBm, FCC:<30dBm

Wireless Modes Enable/Disable Wireless Radio, WMM

Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

WAN Type: 4G/Dynamic IP/Static IP/PPPoE

DHCP: Server, DHCP Client List, Address Reservation

Dynamic DNS: Compatible with 15 more DDNS providers

NAT: Port Forwarding, Port Triggering, UPnP, DMZ

VPN Server & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier

CWMP Protocol: TR069 / TR098 / TR111 / TR181

ACS Server Compatibility: GenieACS, OpenACS

Management: Access Control, Local Management, Remote Management, Wake on LAN

TTL: Extend/Spoof/Custom

DNS: Cloud?are/Google/Custom

Internet Protocols: IPv4 / IPv6

IPv6: Relay, Dynamic(SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack)

SMS: Send/Receive

4G Band Lock: Support

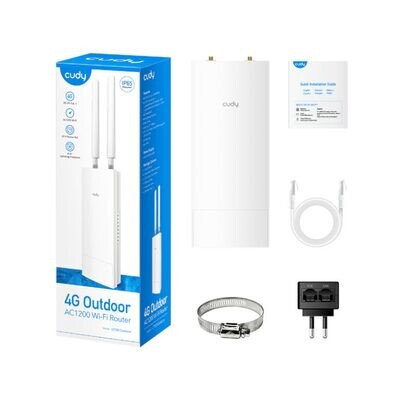

WHAT’S IN THE BOX:

Cudy LT500 4G LTE Outdoor Wi-Fi Router – White x1

PoE Adapter x1

Ethernet Cable x1

WiFi Antenna x2

Pole Installation Accessory
