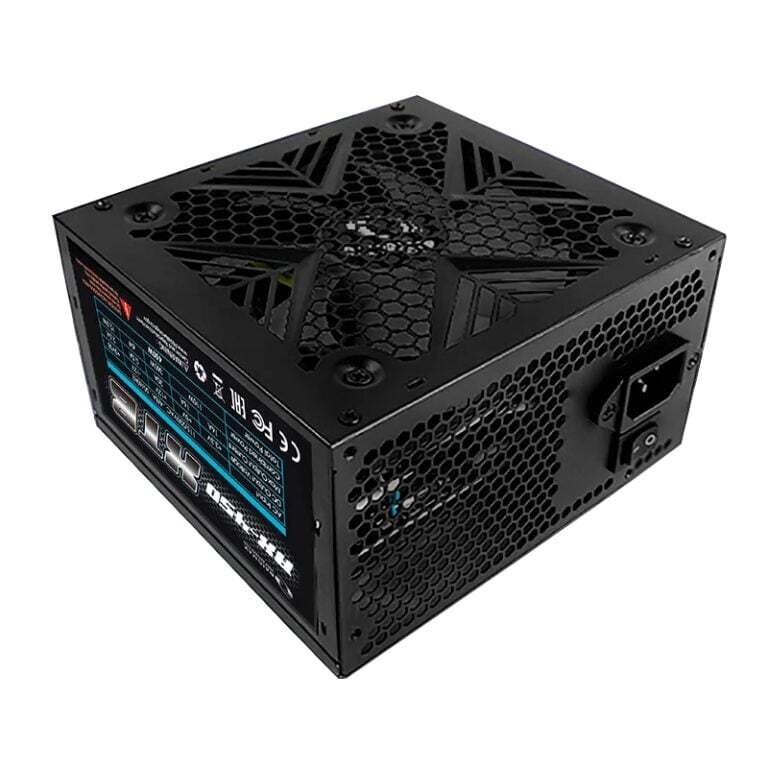

Raidmax RX-450XT XT-Series 450W Non-Modular Power Supply

Raidmax- RX-450XT- Raidmax RX-450XT XT-Series 450W Non-Modular Power Supply - The Raidmax XT-Series 450W Non-Modular PSU is a great entry-level power supply. It utilises a single +12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status.

FEATURES:

Single +12V rail output for higher power usage

C6/C7 power-saving mode on Intel Haswell CPU

Supports Intel ATX12V V2.3

Up to four SATA connectors for multiple HDDs/SSDs

Over Voltage Protection (OVP)

Over Power Protection (OPP)

Short Circuit Protection (SCP)

Honeycomb ventilation design for optimal heat dissipation

Superior cooling performance with a Raidmax silent 120mm fan

SPECIFICATIONS:

Total Power: 450W

AC Input: 230VAC, 4A, 50/60Hz

DC Output Voltage:

+3.3V: 16A – 110W

+5V: 16A – 110w

+12V: 30A – 360W

-12V: 0.5A – 6W

+5VSB: 2.5A – 12.5W

Connectors:

M/B 20+4 PINS: 1

CPU 4+4 PINS: 1

PCI-E 6+2 PINS: 1

PCI-E 6 PINS: 1

SATA: 4

Molex 4 PINS: 2

Protective Features: OVP, OPP, SCP

Dimensions: 15 x 14 x 8.6 cm

What’s In The Box:

Raidmax XT-Series 450W Non-Modular PSU – Black x1- Empower Your System, Unleash Reliability: Elevate Your Build with Our Power Supplies – Delivering Seamless Performance, Unmatched Efficiency, and the Trusted Backbone Your Rig Deserves.
