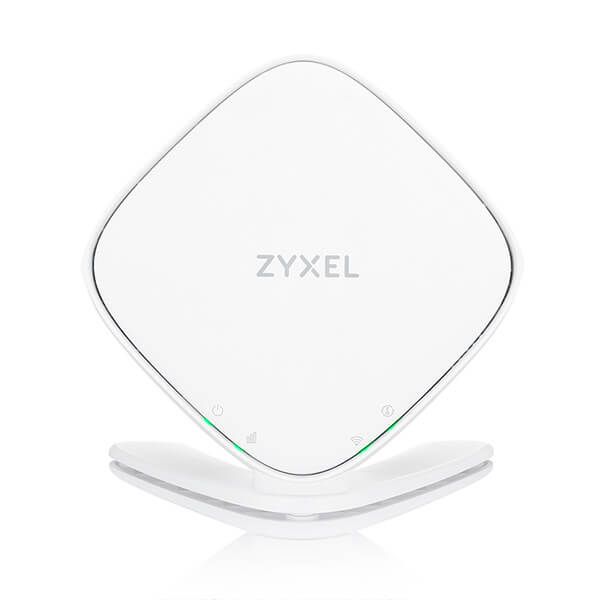

Dual-Band Wireless AX1800 Gigabit Access Point/Extender

The Zyxel WX3100-T0 Dual-Band Wireless AX1800 Gigabit Access Point/Extender enables carrier-grade performance. As a key component of the Zyxel MPro Mesh® Solutions, the Zyxel WX3100-T0 delivers smooth Ultra HD and IPTV streaming and seamless roaming for the whole-home WiFi coverage.

FEATURES:

• Wi-Fi 6 (AX1800)
• Up to 1200 Mbps* with 5GHz 2x2 802.11ax and 600 Mbps* with 2.4GHz
• 2 x Gbit RJ-45 ports
• Video-grade QoS for optimised video streaming
• Zyxel-developed OPAL Operating System for superior flexibility Benefits:

• Wi-Fi 6 (11ax) for superior performance and coverage
• Zyxel MPro MeshTM Solutions (compliant with EasyMesh standards)
• Integrated beamforming technology
• Video-grade QoS for optimised video streaming
• Zyxel-developed OPAL Operating System for superior flexibility

System specifications

• Wireless standards
  • 802.11 b/g/n/ax 2.4 GHz, data rate 600 Mbps
  • 802.11 a/n/ac/ax 5 GHz, data rate 1200Mbps Wireless

• Wireless Protected Setup (WPS)
• WMM
• WPA2/WPA2-PSK with AES security type
• WPA3-SAE
• BSS color
• TWT
• Multi SSID: up to 4
• Supports MU-MIMO, OFDMA DL/UL

VLAN/QoS

• 802.1Q VLAN tagging/un-tagging
• Supports flexible traffic classification

Management

• Web/HTTP/HTTPS: 2 level log-in via SSH or Telnet
• Firmware upgrade via web/TR-069 RPC method
• Dual images system recovery
• Configuration backup/update/ restore default via Web
• TR-069/TR-098/TR-181 i2
• DHCP client and IGMP snooping

Operation mode

• AP/repeater

Hardware specifications

• Ethernet interface
  • Two 1GbE RJ-45 ports

Wireless

• 5 GHz: Two internal antennas
• 2.4 GHz: Two internal antennas

Button

• Power on/off
• Reset
• WPS

LED indicator

• Power/system status
• Backhaul link quality
• WiFi
• WPS
• LAN1/LAN2 (LAP port)

Power consumption

• 12 V DC, 1 A
